[THROUGHPUT]
125–500kg/h
[COMBUSTION]
850–1,200°C
[RESIDUE]
3–5%
Pharmaceutical
Expired & date-lapsed medicines

Expired Medicine Incinerators

Tablets, capsules, ampoules and creams past their date, destroyed on site against the batch numbers.

Date-lapsed stock is the one pharmaceutical waste stream that arrives on a schedule. Every month a quarantine cage fills with tablets, ampoules, creams and part-used packs that cannot be sold, cannot be returned and cannot go into the general stream. A LitBurn destroys them where they were quarantined, at the permitted condition, with the run recorded against the batch numbers that went in.

[OUR_RANGE]

Four Models,
One Solution

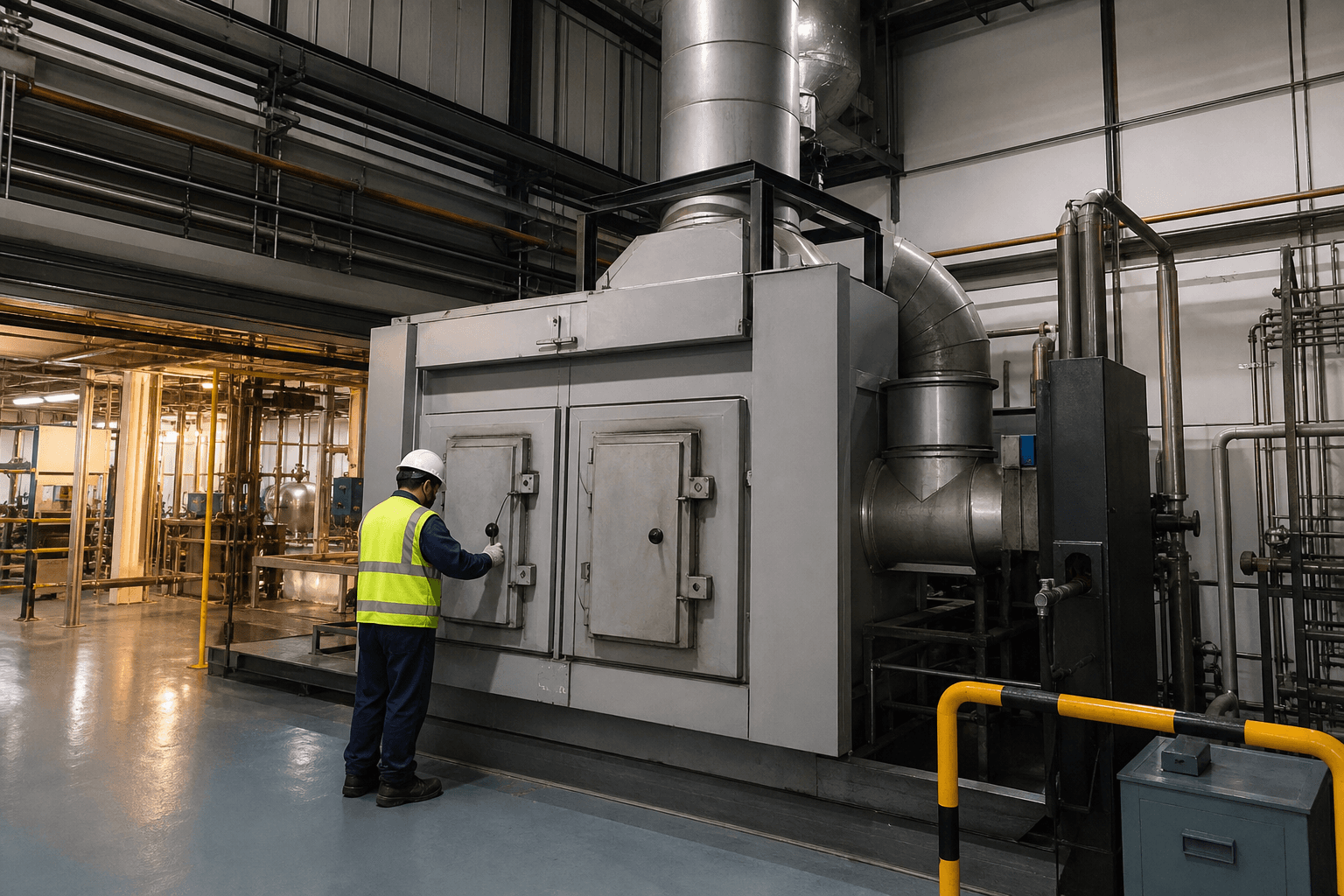

LitBurn LBI-125 general waste incinerator, front-loading dual door
LitBurn LBI-125[CAPACITY]125 kg/h continuous

The entry point to the LitBurn range. A 3.3 m³ primary chamber and three burners give continuous 125 kg/h destruction in a footprint that fits a standard yard bay, which makes it the usual choice for a single-site operator replacing skip hire rather than a multi-site waste contract.

Capacity125 kg
Burn rate125 kg/h
LoadingFront (dual door)
Burners3
Weight2.5 t
Chamber3.3 m³
LitBurn LBI-250 general waste incinerator, front-loading dual door
LitBurn LBI-250[CAPACITY]250 kg/h continuous

The most specified unit in the range. Chamber volume rises to 5.5 m³ for 250 kg/h continuous throughput while the external width grows by only 230 mm over the LBI-125, so sites that outgrow the smallest unit rarely have to rework the slab or the building line.

Capacity250 kg
Burn rate250 kg/h
LoadingFront (dual door)
Burners3
Weight2.9 t
Chamber5.5 m³
LitBurn LBI-375 high-capacity waste incinerator
LitBurn LBI-375[CAPACITY]375 kg/h continuous

A 9.6 m³ chamber — nearly double the LBI-250 — for medium-scale industrial waste destruction. At this size most operators pair the unit with heat recovery, because the thermal output during a full shift is large enough to displace a dedicated water heater.

Capacity375 kg
Burn rate375 kg/h
LoadingFront (dual door)
Burners3
Weight3.4 t
Chamber9.6 m³
LitBurn LBI-500 maximum-capacity industrial waste incinerator
LitBurn LBI-500[CAPACITY]500 kg/h continuous

The largest LitBurn: a 16.2 m³ chamber running 500 kg/h continuously. Specified where waste arrives faster than a batch unit can clear it — large manufacturing sites, industrial estates, and operators consolidating several smaller waste contracts onto one machine.

Capacity500 kg
Burn rate500 kg/h
LoadingFront (dual door)
Burners3
Weight3.8 t
Chamber16.2 m³
[SIZING]

Which Model
Fits Your Volume

Pick a model to see what it clears in a day of expired & date-lapsed medicines.

A pharmacy hub or a single-site returns store: two shifts a month clears roughly two tonnes of quarantined stock without a collection being booked.

Load
125kg
Starting point, not a ceiling
Burn rate
125 kg/h
Sustained while running
Weight
2.5t
Front (dual door) loading

Medicinal waste codes on the permit

Medicines other than cytotoxic and cytostatic fall under 18 01 09 from healthcare sources or 20 01 32 from municipal ones. Both have to be named at permit application — a permit written for general waste does not cover the quarantine cage.

1,100°C where blisters push past 1% halogenated

PVC and PVdC blister films count towards the 1% halogenated organic threshold that raises the secondary chamber minimum to 1,100°C. A blister-heavy stream should declare the higher condition rather than assume the 850°C baseline.

Segregation stays a pharmacy duty

Controlled drugs, cytotoxics and pressurised inhalers each have their own route. On-site incineration removes the collection dependency, not the classification discipline that decides what may enter a general charge.

Records close the write-off

One run, one manifest, one temperature log, one ash weight. Together they are the certificate of destruction, and they should reconcile against the stock system entry that wrote the batch off in the first place.

[WHY ON SITE]

Why Burn It
On Site

4 things change on the day this stream stops leaving the site.

LitBurn LBI-125 general waste incinerator, front-loading dual door
LitBurn range125–500 kg/h continuous

Quarantine is a cost, not a store

Stock waiting for a destruction collection occupies secure floor space, stays on the stock system as a liability and has to be counted at every audit. Destroying it on the day it is written off closes the line instead of moving it to a different cage.

The record follows the batch number

A reconciled manifest, a temperature log and an ash weight tie the destruction to the batch that was written off. A contractor's certificate ties it to a consignment note, which is a weaker link and one you did not witness.

Diversion risk ends at the charge door

Date-lapsed does not mean worthless — expired stock has a resale market, and every transfer is an opportunity for it to reach one. Destruction on site removes the transfer entirely rather than papering over it with a certificate.

Packaging goes in with the product

Blisters, bottles, cartons and patient information leaflets are charged with the dose form rather than separated first. One waste stream instead of three, and no handling step where loose product is exposed.

Dual-chamber unit, 1,100°C capable

Primary chamber running 850–1,200°C with a secondary chamber holding flue gas above 850°C for two seconds. Where the charge carries more than 1% halogenated organic content — PVC and PVdC blisters, chlorinated actives, fluorinated excipients — the secondary minimum rises to 1,100°C and the unit holds it as built rather than as an upgrade.

Front dual-door loading

The LBI range is charged through a front dual door at floor level, not lifted over a top rim. Quarantine cages, wheeled bins and pallet-decanted totes go in at the height they arrive at, which is what makes a returns hall workable without a hoist.

[SUPPLY_SCOPE]

What Ships
With The Unit

Identical whichever stream it is specified for. The operating procedure changes; the machine does not.

Dual-chamber unit, 1,100°C capable

Primary chamber running 850–1,200°C with a secondary chamber holding flue gas above 850°C for two seconds. Where the charge carries more than 1% halogenated organic content — PVC and PVdC blisters, chlorinated actives, fluorinated excipients — the secondary minimum rises to 1,100°C and the unit holds it as built rather than as an upgrade.

Front dual-door loading

The LBI range is charged through a front dual door at floor level, not lifted over a top rim. Quarantine cages, wheeled bins and pallet-decanted totes go in at the height they arrive at, which is what makes a returns hall workable without a hoist.

IP6X control panel with cycle logging

PLC control with chamber thermocouples, interlocked charge door and a time-stamped temperature record per run. That record is the evidence behind a certificate of destruction — without it a certificate asserts a temperature nobody measured.

Burner set and fuel train

Configured for natural gas, LPG, diesel, biofuel or hydrogen, with three burners across the LBI range. Fuel choice is a site decision; the combustion condition is identical whichever is specified.

Coretex refractory lining

Monolithic castable lining rated for the full temperature range and for sustained running at the top of it. Replaceable in service rather than requiring the shell to be scrapped with it — relevant on a unit that may run shifts rather than single burns.

Stack, dispersion data and commissioning

Stack supplied to the height your site-specific dispersion assessment calls for, with the emissions data pack the permit application references, on-site commissioning, a witnessed first run and operator training for the staff who will hold the charge-door key.

[THE_CYCLE]

How One Burn Runs,
Start To Finish

One run is one countable event, reconciled against a manifest and evidenced by a time-stamped temperature log.

[ON_SITE]

One Cycle,
Start To Finish

Adds a quarantine-to-charge reconciliation and waste codes 18 01 09 or 20 01 32 named on the permit. Stock is charged in its primary packaging, so nothing is de-blistered and nothing is decanted.

Discuss this requirement
Write off and reconcile

Stock is moved to quarantine and reconciled against the batch record before anything is destroyed. What is counted here becomes the destruction manifest — the reconciliation is the audit trail, not paperwork that follows it.

Charge intact packs

Cages and bins are wheeled to the front dual door at floor level and charged without de-blistering, decanting or opening. The most exposed step in medicines destruction is removed rather than made safer.

Burn at 850–1,200°C

Primary combustion destroys the dose form, the excipient matrix and the packaging around it. Continuous duty means the unit is fed while running rather than sealed for a cycle, so a month's write-off clears in hours of operation.

Secondary retention

Gases are held above 850°C for two seconds — 1,100°C where a blister-heavy charge carries more than 1% halogenated organic content. This is what destroys the active molecule rather than volatilising it up the stack.

Ash-out and certify

Residue is 3–5% mineral ash plus inert foil, with no recoverable dose form. The manifest, the temperature log and the ash weight close the destruction record for the batch.

LitBurn LBI-500 maximum-capacity industrial waste incinerator
LitBurn LBI-125 general waste incinerator, front-loading dual door
LitBurn LBI-250 general waste incinerator, front-loading dual door
LitBurn LBI-375 high-capacity waste incinerator
LitBurn LBI-500 maximum-capacity industrial waste incinerator
LitBurn LBI-125 general waste incinerator, front-loading dual door
[PRODUCT]LitBurn LBI-125
[TECHNICAL_DOCUMENTS]Download Brochures
[SCOPE]

What You Can Burn —
And What You Can't

One run takes the whole stream without pre-sorting. What must never enter it is a short, hard list.

Yes: accepted in a run

No pre-sorting between these

  • Solid oral dose forms in their packagingTablets and capsules in blisters, strips, bottles and cartons. Charged whole — the foil leaves as inert metal in the ash and nothing is de-blistered first.
  • Liquids, creams and ointments in their containersSyrups, suspensions, topical creams, gels and ointments in the tubes, sachets and bottles they were dispensed in, up to the container sizes agreed at specification.
  • Ampoules, vials and pre-filled devicesGlass ampoules, vials, pre-filled syringes and pen devices, charged sealed. The glass fraction reports to the ash as inert residue.
  • Part-used and opened packsReturns, broken bulk and split packs where the count no longer matches the pack — exactly the stock that cannot re-enter the supply chain and cannot be reconciled by resale.
  • Veterinary medicinal productsDate-lapsed veterinary stock from practices and distributors, on the same combustion condition and with veterinary medicines named in the permit alongside human medicinal codes.
  • Nutritional, borderline and unlicensed productsSupplements, borderline substances and specials held under the same write-off procedure, where their disposal route would otherwise be decided item by item.

No: never charged

Not a permit question — these stay out

  • Controlled drugs that have not been denatured and witnessedSchedule 2 drugs require denaturing and a witness authorised under the Misuse of Drugs Regulations 2001 before disposal. Incineration is the step after that, never instead of it.
  • Cytotoxic and cytostatic medicines in a general chargeHazardous under 18 01 08* with their own permitted scope and segregation. Route them as cytotoxic waste rather than letting them ride along in a general expired-stock charge.
  • Pressurised inhalers, aerosols and gas canistersSealed vessels under heat. Metered-dose inhalers and aerosol canisters go through their own return or WEEE-adjacent route, whatever their expiry status.
  • Bulk liquid solvent and reagentA waste incinerator of this class is not a liquid injection plant. Bulk solvent goes to a licensed hazardous liquids route; absorbed residues on wipes are a different question and belong to the laboratory stream.

Can you legally burn expired & date-lapsed medicines on site?

Technically, yes: the chamber destroys almost everything on the accepted list at 850–1,200°C, and capability is rarely the constraint. Legally is a separate question. What your site is allowed to burn is set by your environmental permit from the Environment Agency, SEPA or NIEA and the waste codes written into it. The never-charged list is different again: those materials are out of scope for the unit or governed by a direction, and no permit wording brings them back in. Send us the codes you hold, or the ones you expect to apply for, and we will tell you which of this list they cover before anything is specified.

Send us your waste codes
[WORKED EXAMPLE]

What size incinerator for 2 tonnes of expired stock a month?

Arithmetic on published model figures, not a customer reference. Your numbers go through the same steps.

LitBurn LBI-375 high-capacity waste incinerator
[THE_ARITHMETIC]

How This
Was Worked Out

2,000 kg a month against the LBI-125's 125 kg/h = about 16 hours of running, or two working shifts a month, leaving 60–100 kg of mineral ash at 3–5% and no destruction collection to book. Expired stock is bulky rather than dense — cartons and blisters fill the chamber long before they reach the weight rating. Check the chamber volume against a month of cages, not just the kilograms.

Ash at 3–5%

60–100 kg a month

Destruction collections booked

0

Certificates issued

1 per run, against the manifest

Unit weight

2.5 t

≈2,000 kg
Monthly write-off
LBI-125
Model specified
≈16 h a month
Run time
Have us size it

Send your daily or weekly arisings and we will confirm the model, the run time and the permit route.

[RELATED]

Related Products
& Services

Complementary equipment and engineering services for your process.

[QUESTIONS]

Expired & date-lapsed medicines Questions

Answered against the published figures for the models specified for this stream, not a generic range sheet.

An expired medicine incinerator is a dual-chamber unit used to destroy date-lapsed medicinal product at the site that holds it, rather than consigning it to a third party for destruction elsewhere. In practice that means a pharmacy hub, a wholesaler's returns hall, a manufacturer's quarantine store or a veterinary distributor — anywhere stock is written off on a rolling basis and has to be provably destroyed rather than merely removed. The combustion requirement is the one the Industrial Emissions Directive sets: flue gas above 850°C for two seconds in a secondary chamber, primary between 850°C and 1,200°C. For a solid dose form that condition destroys the active molecule along with the tablet — what leaves is mineral ash, not a recognisable pill in a landfill cell. Where the charge is blister-heavy enough to pass 1% halogenated organic content, the secondary minimum rises to 1,100°C. Expired stock is charged in its primary packaging. De-blistering, decanting or emptying bottles before destruction creates the two things this stream exists to avoid: a handling step where product is exposed, and a window where a saleable-looking dose form sits loose. The pack goes in whole and the foil comes out as inert metal in the ash. The output is 3–5% mineral ash and a run record. That record — reconciled manifest, chamber temperature log, ash weight — is what a certificate of destruction is written against, and it is the reason a site with a rolling write-off would specify a unit rather than book a collection.

2,000 kg a month against the LBI-125's 125 kg/h = about 16 hours of running, or two working shifts a month, leaving 60–100 kg of mineral ash at 3–5% and no destruction collection to book. Expired stock is bulky rather than dense — cartons and blisters fill the chamber long before they reach the weight rating. Check the chamber volume against a month of cages, not just the kilograms.

No, and doing it makes the process worse. De-blistering creates a handling step where loose dose forms are exposed and a window where saleable-looking product sits outside its pack. Blisters, bottles and cartons are charged whole; the foil leaves as inert metal in the ash.

Medicines other than cytotoxic and cytostatic are 18 01 09 where they arise from healthcare, or 20 01 32 from municipal sources. Cytotoxic and cytostatic products are a different code entirely — 18 01 08*, hazardous — and should not be assumed into a general expired-stock charge.

Yes, provided veterinary medicinal products are named in the permit alongside the human medicinal codes. The combustion condition is identical; what differs is the code list the application declares, and adding it at application is far easier than varying a permit afterwards.

By three records the run produces: the reconciled manifest of what was charged, the time-stamped chamber temperature log, and the ash weight at 3–5% of input mass. A certificate of destruction is issued against those, which is a stronger link to the batch than a contractor's consignment note.

No. The LBI range is rated for continuous duty, but a site clearing two tonnes a month runs it for a couple of shifts and shuts it down. Fewer, longer runs are more fuel-efficient than repeatedly heating the refractory from cold, so batching a month of write-off into one run is the sensible pattern.

The LBI-125 in most cases. At 125 kg/h it clears about a tonne in an eight-hour shift, which covers a hub or a single-site returns store comfortably. Step up to the LBI-250 where cages fill weekly rather than monthly, or to the LBI-375 where several branches consolidate onto one destruction point.
