Incinerators
Animal disposal

Animal Carcass Incinerators

10 animal disposal waste streams on one permitted AniBurn.

Burying fallen stock has been unlawful since 2003, so every carcass leaves the holding or is destroyed on it. Collection means storage, a vehicle at the gate and a wait you do not control. AniBurn units destroy fallen stock where it dies, in an APHA-approved plant, at a condition that ends the pathogen with the animal.

[OUR_RANGE]

Three Models,
One Solution

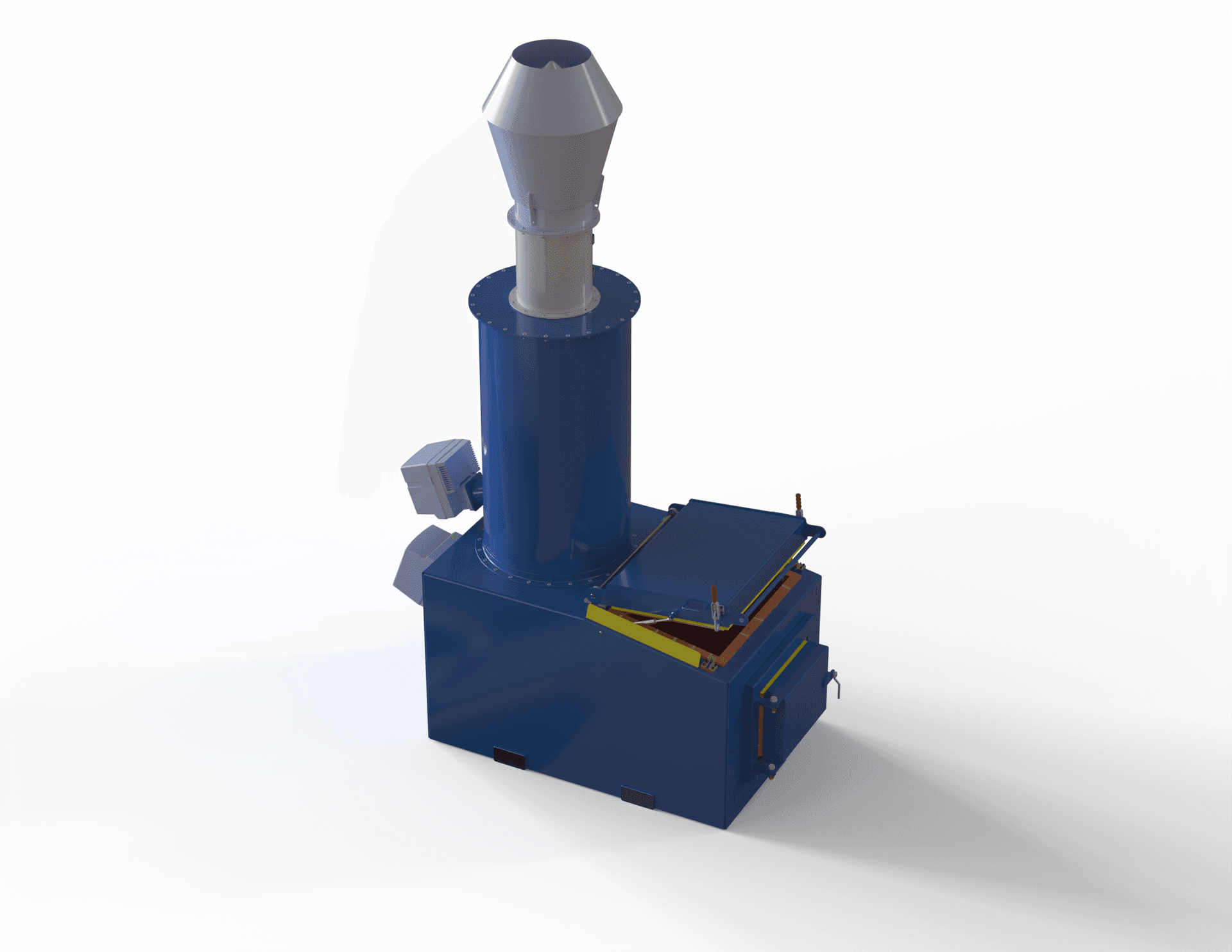

AniBurn ABI-150[CAPACITY]150 kg per charge

150 kg per charge for veterinary practices, small farms and pet cremation. The chamber is tall relative to its load rating because carcass waste is bulky and wet — volume, not weight, is the binding constraint.

Capacity150 kg
Burn rate<50 kg/h
LoadingTop
Burners2
Weight2.6 t
Chamber2480 × 1030 × 2330 mm

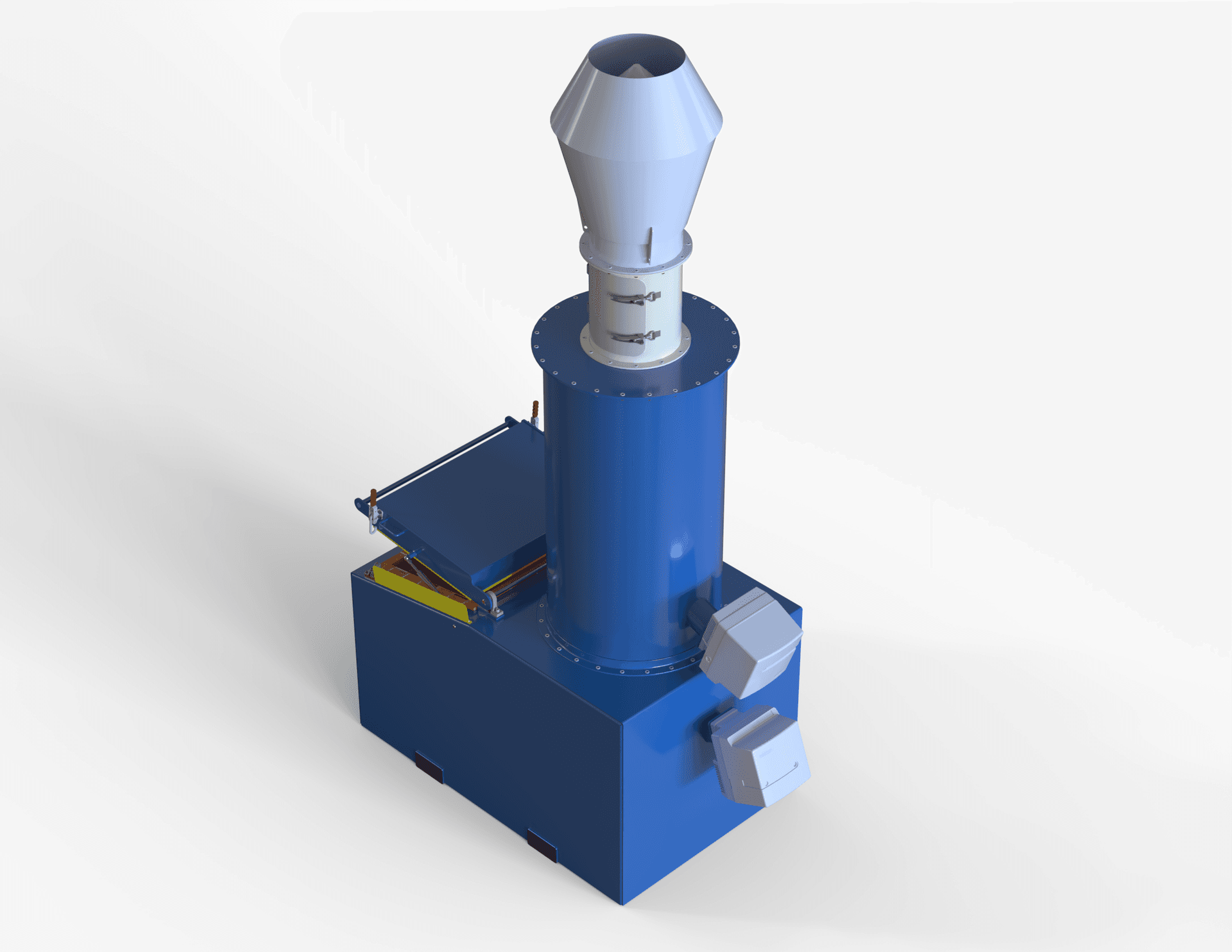

AniBurn ABI-250[CAPACITY]250 kg per charge

250 kg per charge with a 2880 mm chamber. The usual specification for a working livestock farm that needs fallen stock dealt with on site under biosecurity rules rather than held for collection.

Capacity250 kg
Burn rate<50 kg/h
LoadingTop
Burners2
Weight3 t
Chamber2880 × 1250 × 2480 mm

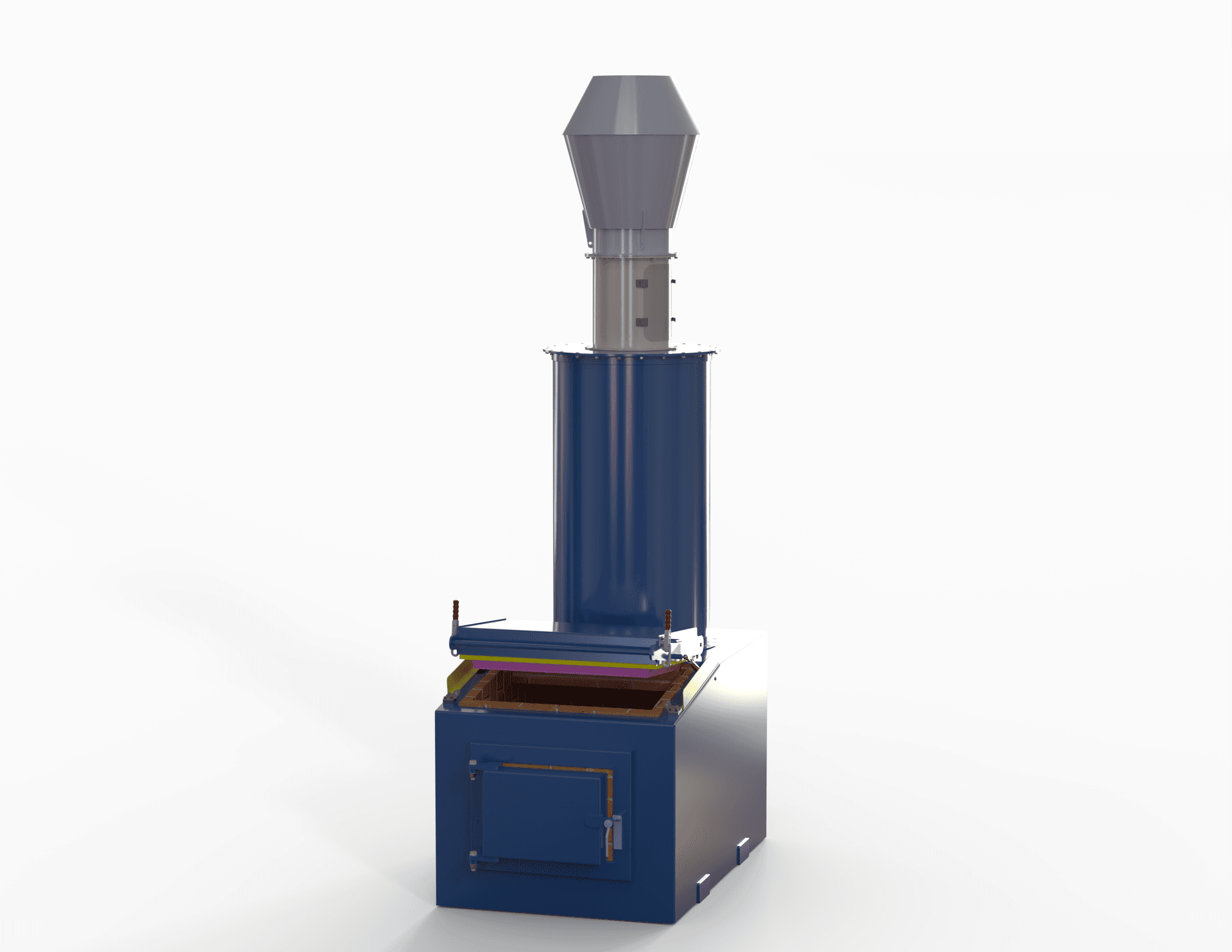

AniBurn ABI-300[CAPACITY]300 kg per charge

The largest AniBurn: 300 kg per charge in a 3180 mm chamber. Sized for commercial pet crematoria and larger livestock units where a single daily cycle has to clear everything held in cold storage.

Capacity300 kg
Burn rate<50 kg/h
LoadingTop
Burners2
Weight3.4 t
Chamber3180 × 1400 × 2630 mm
[APPLICATIONS]

10 Streams,
One Machine

All 10 destroy at the same condition, so one permitted AniBurn covers the lot. What changes is the procedure and the waste codes.

Poultry mortality is not an event, it is a daily figure. A 30,000-bird house losing 0.05% a day produces around fifteen birds every morning, and where those birds go decides whether the unit's biosecurity holds. AniBurn units destroy them on the site, the day they are picked up, without a collection point or a vehicle at the gate.

Poultry in full

Adds a daily rather than occasional cycle, and APHA direction during an avian influenza event. Birds are light and bulky, so the charge fills on volume long before the rating.

Daily mortality at 0.05%
≈ 15 birds
Approximate mass
30–45 kg
Model specified
ABI-150

APHA approval of the plant

Animal by-products may only be incinerated in a plant approved under the retained ABP Regulation. AniBurn units burn at under 50 kg/h, which places them in the low-capacity class, and the approval carries operating and record-keeping conditions that sit alongside — not instead of — the environmental permit.

Environmental permit

Required from the Environment Agency, SEPA or NIEA. Two consents, two regulators, two different risks: the permit covers emissions and operation, the APHA approval covers the by-product. Holding one does not imply the other.

TSE sampling comes before destruction

Fallen cattle over 48 months and fallen sheep and goats over 18 months fall into TSE surveillance classes that may require a sample. Once the carcass is in the chamber the sample cannot be taken, so the testing question is asked at the charge door and not after it.

Burial is not the fallback

On-farm burial of fallen stock has been unlawful since 2003 outside designated remote areas, and burning a carcass on an open fire is not a disposal route. Where an incinerator is down, the alternative is an approved collector — not the muck heap.

[SUPPLY_SCOPE]

What Ships
With The Unit

Identical whichever stream it is specified for. The operating procedure changes; the machine does not.

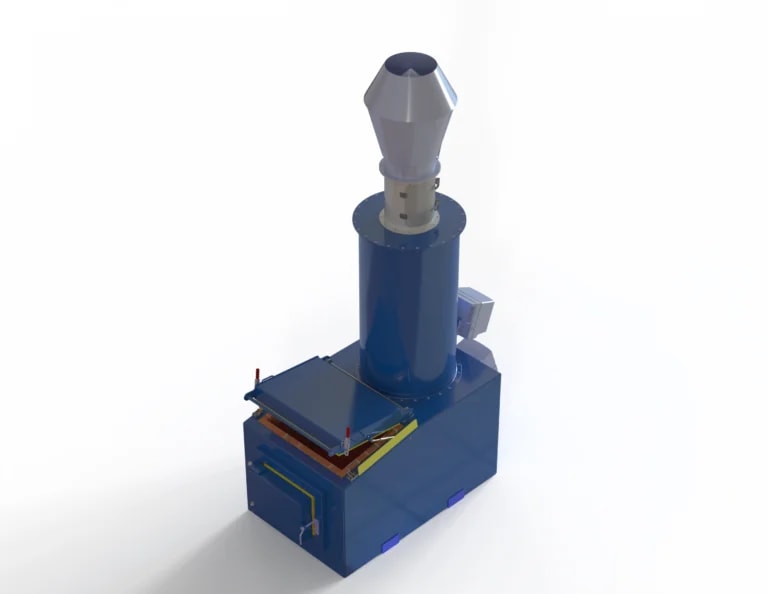

AniBurn ABI-150 animal carcass incinerator
AniBurn range150–300 kg per charge

Dual-chamber unit

Primary chamber running 850–1,200°C with a secondary chamber holding flue gas above 850°C for two seconds. For animal by-products this is not a preference: it is the combustion condition an APHA-approved incineration plant has to meet.

Two-burner set and fuel train

All three AniBurn models carry two burners, configured for natural gas, LPG, diesel, biofuel or hydrogen. Carcass waste is wet, so burner duty on this stream is doing more evaporation than on any other — fuel choice is a site decision, the combustion condition is not.

Top-loading charge door

Carcasses are dead weight and awkward to handle. Top loading means a carcass goes in from above with a hoist, loader or teleporter rather than being dragged through a door at chest height, which is the difference between a two-person job and a one-person one.

IP6X control panel

PLC control with cycle logging and chamber thermocouples. The cycle log is the record that a fallen-stock disposal, an APHA-directed cull or an individual pet cremation actually happened, and when.

Coretex refractory lining

Monolithic castable lining rated for the full temperature range, replaceable in service. Wet, fatty loads are the hardest duty a refractory sees, which makes lining quality the thing that decides service life on this stream rather than on any other.

Stack, dispersion data and commissioning

Stack supplied to the height your site-specific dispersion assessment calls for, with the emissions data the permit application references, plus on-site commissioning and operator training. On a livestock unit the neighbours are the reason the assessment matters.

[THE_CYCLE]

How One Burn Runs,
Start To Finish

One charge is one countable event. That is what makes a batch unit auditable and a continuous one not.

[ON_SITE]

The Same Cycle,
Whichever Stream

Every animal disposal stream runs the cycle below. What differs between them is the procedure at the charge door and what the permit has to name — not the machine and not the combustion condition.

Discuss this requirement
Check the category and the testing

Establish the animal by-product category and whether the animal is in a TSE surveillance class before anything is loaded. A bovine over 48 months or a sheep or goat over 18 months may require sampling first, and once the carcass is destroyed the sample cannot be taken.

Load from above

The carcass goes in from above with a hoist or loader, and the charge is recorded. Watch the charge rating rather than the chamber: at 150, 250 and 300 kg the AniBurn range covers calves, lambs, pigs, poultry and pets, not mature adult cattle or horses.

Primary combustion

The primary chamber reaches operating temperature within 30 minutes and runs at 850–1,200°C. A carcass is largely water and fat: the first part of the cycle drives off moisture, then the fat carries the burn, which is why this stream runs longer per kilogram than dry waste.

Secondary retention

Flue gas is held above 850°C for two seconds in the secondary chamber. This is the condition that destroys bacterial and viral pathogens along with the carcass, and the reason on-site destruction is a biosecurity measure rather than just a disposal one.

Ash-out and record

Residue is 3–5% of input mass: sterile mineral ash and bone fragment with no biological material in it. Close the cycle log against the fallen-stock record, the APHA direction or the cremation booking, whichever the charge was run against.

AniBurn ABI-300 animal carcass incinerator
AniBurn ABI-150 animal carcass incinerator
AniBurn ABI-250 animal carcass incinerator
AniBurn ABI-300 animal carcass incinerator
AniBurn ABI-150 animal carcass incinerator
[PRODUCT]AniBurn ABI-150
[TECHNICAL_DOCUMENTS]Download Brochures
[SCOPE]

What You Can Burn —
And What You Can't

Every stream has its own accepted list and its own exclusions. They sit on the 10 stream pages, not here.

Can you legally burn animal disposal waste on site?

Technically, yes: the chamber destroys almost everything these streams produce at 850–1,200°C, and capability is rarely the constraint. What your site is allowed to burn is set by your environmental permit from the Environment Agency, SEPA or NIEA and the waste codes written into it, plus APHA approval, because animal by-products are regulated under their own rules. Open the stream you are dealing with for its accepted list and the materials that never go in whatever the permit says — or send us the codes you hold and we will tell you what they cover.

Send us your waste codes
[ONE_UNIT]

One Machine,
All 10 Streams

What changes between streams is the operating procedure and the waste codes on the permit. The machine does not change.

AniBurn ABI-300 animal carcass incinerator
[THE_ARGUMENT]

Same Condition,
Every Stream

All 10 streams destroy at the same condition: 850–1,200°C in the primary chamber with flue gas held above 850°C for two seconds in the secondary. That is why one permitted AniBurn covers the lot rather than needing a machine each. What differs is the procedure at the charge door and what the permit has to name.

Throughput is the limit, not capability

These are batch units burning at under 50 kg/h, so a full charge is a complete cycle of roughly 4–7 hours across the range, first load to complete burn-down and confirmed at commissioning. Where a site runs several of these streams through one unit, size on the combined arisings rather than on whichever stream prompted the enquiry.

Sizing, in one line

Charges = volume ÷ capacity. Days ≈ charges. Ash = 3–5% of what went in. Check the chamber volume as well as the weight rating: bulky loads fill the box first, dense ones reach the rating first.

10
Streams on one permit
150–300kg
Per charge
3–5%
Ash residue
Have us size it

Send your combined arisings across the streams you run and we will confirm the model, the charge count and the permit route.

[RELATED]

Related Products
& Services

Complementary equipment and engineering services for your process.

[FURTHER_READING]

Sizing and background

The two calculators that size this duty, and write-ups from our own work on animal disposal incineration.

[QUESTIONS]

Animal disposal Questions

Answered against the published figures for the AniBurn range, not a generic sheet.

An animal carcass incinerator is a dual-chamber batch unit approved to destroy animal by-products on the site that produced them. The primary chamber runs at 850–1,200°C and the secondary holds the flue gas above 850°C for two seconds — the condition an approved incineration plant has to meet under the retained ABP Regulation, not a specification choice. The reason this equipment exists at all is that the obvious alternatives were closed. On-farm burial of fallen stock has been prohibited since 2003 except in designated remote areas, and open burning is not a lawful disposal route for a carcass. What is left is collection by an approved carrier, or destruction on the holding. Both are legitimate; they fail in different ways. Collection fails on time and on biosecurity. A carcass waits in a collection point until a round reaches you, which means storage, smell, vermin and scavengers, and a vehicle that has been at other holdings arriving at your gate. During a disease event that vehicle movement is precisely what the restrictions exist to prevent, and collection capacity is scarcest exactly when mortality is highest. The honest limit on this range is the charge rating. At 150, 250 and 300 kg per charge the AniBurn units cover poultry, lambs, calves, pigs, goats, deer, pets and abattoir arisings comfortably. A mature adult cow at 500–750 kg or a horse at 400–600 kg exceeds every model in the range, and no amount of specification writing changes that — those need a high-capacity plant or a collector.

No. On-farm burial of fallen stock has been prohibited since 2003 except in designated remote areas, because burial puts pathogens and pharmaceutical residues into groundwater. The lawful routes are collection by an approved carrier or destruction in an APHA-approved incinerator on the holding.

Two. The plant must be approved by APHA under the retained ABP Regulation to incinerate animal by-products, and it needs an environmental permit from the Environment Agency, SEPA or NIEA. They are separate consents from separate regulators covering different risks.

No, and it is better to say so plainly. The range runs 150, 250 and 300 kg per charge. That covers calves, youngstock, sheep, goats, pigs, poultry, deer and pets. A mature cow at 500–750 kg or a horse at 400–600 kg exceeds every model, and those carcasses need a high-capacity plant or an approved collector.

Possibly, and the order matters. Fallen cattle over 48 months and fallen sheep and goats over 18 months sit in TSE surveillance classes that may require sampling. The sample has to be taken before the carcass is destroyed, so the question belongs at the charge door — after the cycle it cannot be answered.

It is a perfectly legitimate route and many holdings use it. It fails on two things: time and biosecurity. The carcass waits at a collection point until a round reaches you, and the vehicle that arrives has been at other holdings. During a disease event that movement is what the restrictions are designed to stop, and collection capacity is scarcest when mortality is highest.

Most of a working day for a full charge. These are batch units at under 50 kg/h, and carcass waste is the slowest duty they see because a carcass is largely water — the early cycle drives off moisture before the fat carries the burn.

Sterile mineral ash and bone fragment at 3–5% of input mass, with no biological material in it. It is still waste and needs a transfer note if it leaves the holding, except in pet cremation where the ashes are returned to the owner.

Yes — 850–1,200°C in the primary chamber with two seconds above 850°C in the secondary destroys bacterial and viral loads along with the carcass. During a notifiable disease event, though, APHA directs how carcasses are handled and their instruction sets the method; an approved unit on site is a means of complying with it, not an alternative to it.
