Unlocking Hidden Savings via Heat Exchanger Network Optimisation
Applying Pinch Analysis to reduce industrial energy consumption in alignment with ISO 50001 standards.
In Brief — Unlocking Hidden Savings via Heat Exchanger Network Optimisation
Heat exchanger network optimisation, utilising Pinch Analysis, enables industrial facilities to achieve theoretical minimum energy consumption by identifying the thermodynamic pinch point. This systematic approach allows engineers to eliminate cross-pinch heat transfer, typically reducing external utility consumption by 10% to 30% while ensuring strict adherence to ISO 50001 energy management standards.
Heat exchanger network optimisation is a methodical process of designing and restructuring the thermal connectivity between hot and cold process streams to minimise external utility consumption and improve overall plant energy efficiency. By applying thermodynamic principles—most notably Pinch Analysis—process engineers can identify the absolute minimum energy targets for heating and cooling, providing a rigorous roadmap for retrofitting brownfield sites or designing grassroots facilities that align with stringent international energy standards like ISO 50001.

Heat & Mass Balance.
Map every energy and material flow in your process with detailed heat and mass balance calculations — the foundation for any optimisation or design project.

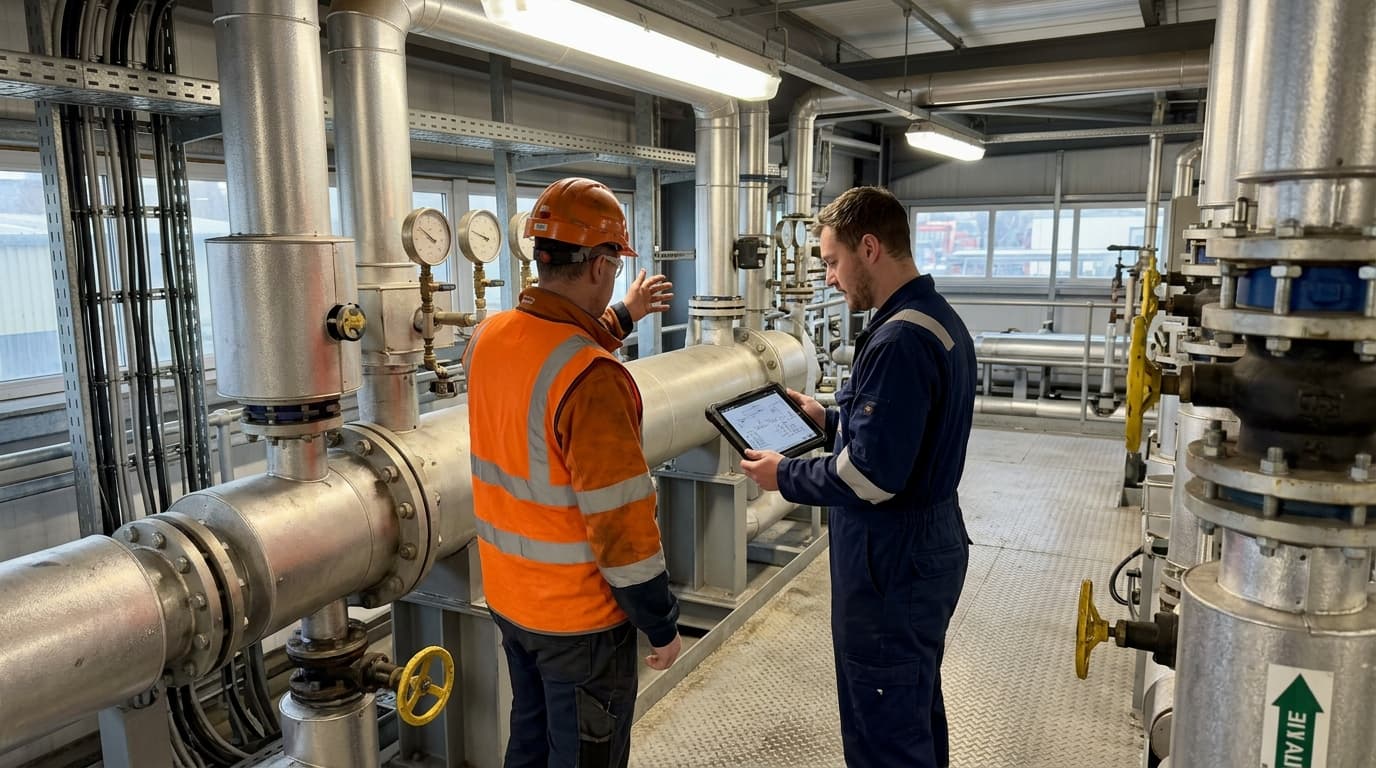

The Mechanics of Pinch Analysis: Setting the Thermodynamic Limit

At the heart of any systematic approach to energy efficiency lies the Pinch Analysis methodology, an industry-standard framework pioneered by Bodo Linnhoff. This technique operates on a fundamental thermodynamic premise: an industrial process’s minimum energy consumption is dictated by the temperature levels at which heat is available and required, rather than just the total enthalpy change.
The process begins with the rigorous extraction of plant data—identifying every hot stream (requiring cooling) and cold stream (requiring heating) within a unit or across a site. Engineers aggregate these data into Composite Curves—a graphical representation of temperature versus enthalpy (heat load). The area where the Hot Composite Curve and Cold Composite Curve are at their closest approach—the ΔTmin—is defined as the "Pinch Point."
This pinch point effectively bifurcates the system into two distinct thermodynamic regions:
- Above the Pinch: The process is a net heat sink, requiring external hot utility (steam, thermal oil, or electric heat).
- Below the Pinch: The process is a net heat source, requiring external cold utility (cooling water or refrigeration).
The critical design rule derived from this analysis is simple but transformative: to achieve the theoretical minimum energy consumption, one must never transfer heat across the pinch. By restricting heat integration to within each respective region and avoiding the use of hot utilities below the pinch (and cold utilities above it), engineers can identify significant, quantifiable opportunities for heat recovery that were previously obscured by inefficient network configurations.
Retrofitting Brownfield Sites: Navigating Infrastructure Constraints
While greenfield projects allow for optimal network synthesis, the primary challenge for most industrial facilities lies in retrofitting existing "brownfield" heat exchanger networks (HENs). In these scenarios, the objective is rarely to create a theoretical ideal but rather to identify the most cost-effective modifications that unlock substantial energy savings.
Retrofit design typically focuses on debottlenecking. Industry professionals often utilise tools such as the "Bridge Analysis" or "Heat Exchanger Load Diagram" (HELD) to visualise existing network limitations. These methods help determine where to add new heat exchange area or modify piping to allow for additional process-to-process heat recovery.
A key difficulty in retrofitting is the physical and operational landscape of the plant. Unlike in simulation models, real-world constraints include:
- Piping and Plot Space: Physical access to install new exchangers or re-route existing streams is often restricted in established plants.
- Process Dynamics: Modifications must not compromise control stability or induce pressure drops that exceed pumping capacity.
- Fouling and Maintenance: The long-term reliability of an exchanger network depends on factors like fluid velocity and maintenance access—variables that are often overlooked in theoretical, highly complex network designs.
When evaluating retrofit options, engineers must balance the "energy-capital trade-off." This involves calculating the capital expenditure (CAPEX) for installing additional heat transfer area or new exchangers against the operational expenditure (OPEX) savings generated by reduced steam or fuel consumption over the asset's remaining lifecycle.

Heat & Mass Balance.
Map every energy and material flow in your process with detailed heat and mass balance calculations — the foundation for any optimisation or design project.

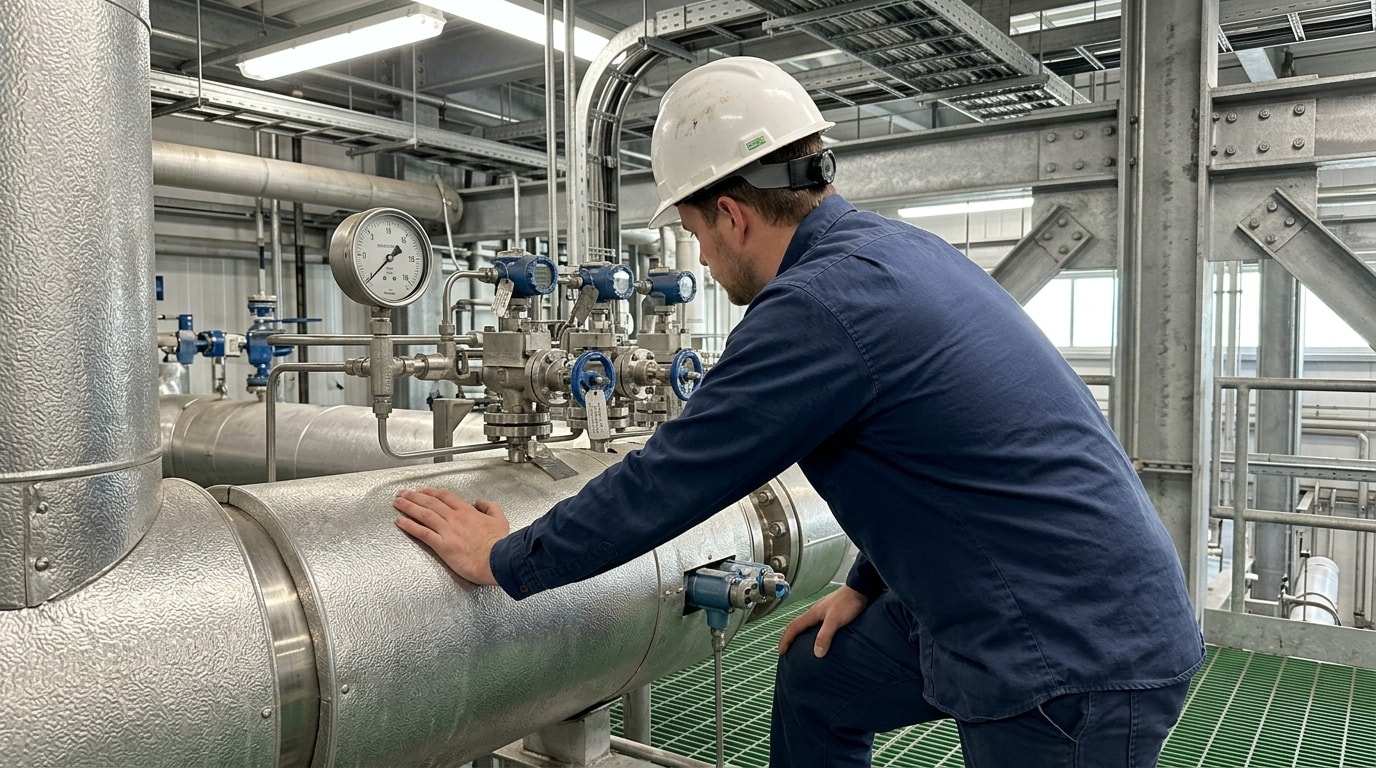

Beyond Pinch: Total Site Integration and Algorithmic Approaches

For complex, multi-unit industrial sites—such as large-scale chemical complexes or refineries—the conventional Pinch Analysis of a single process unit is often insufficient. Here, the industry increasingly employs "Total Site Integration" (TSI) and algorithmic approaches like "P-Graph" (Process Graph).
Total Site Integration treats the entire facility as a single entity, identifying heat recovery opportunities not just within specific units but between them. By using a "Grand Composite Curve" for the entire site, engineers can identify opportunities to redistribute waste heat from a high-temperature process unit to a lower-temperature one, often via an intermediate utility level, such as a steam main or a closed-loop thermal fluid system.
In contrast to the heuristic, graphical nature of Pinch Analysis, P-Graph methods offer a combinatorial, algorithmic approach to network synthesis. P-Graph explores an exhaustive range of possible network structures to find the mathematically optimal configuration. While computationally intensive, this method is increasingly favoured for complex debottlenecking problems where the number of potential stream-matching combinations is too large for manual, graphical analysis. These advanced computational techniques are becoming the standard for modern "smart" plants aiming to integrate heat pumps, mechanical vapour recompression (MVR), and electrified heating systems into their heat recovery networks.

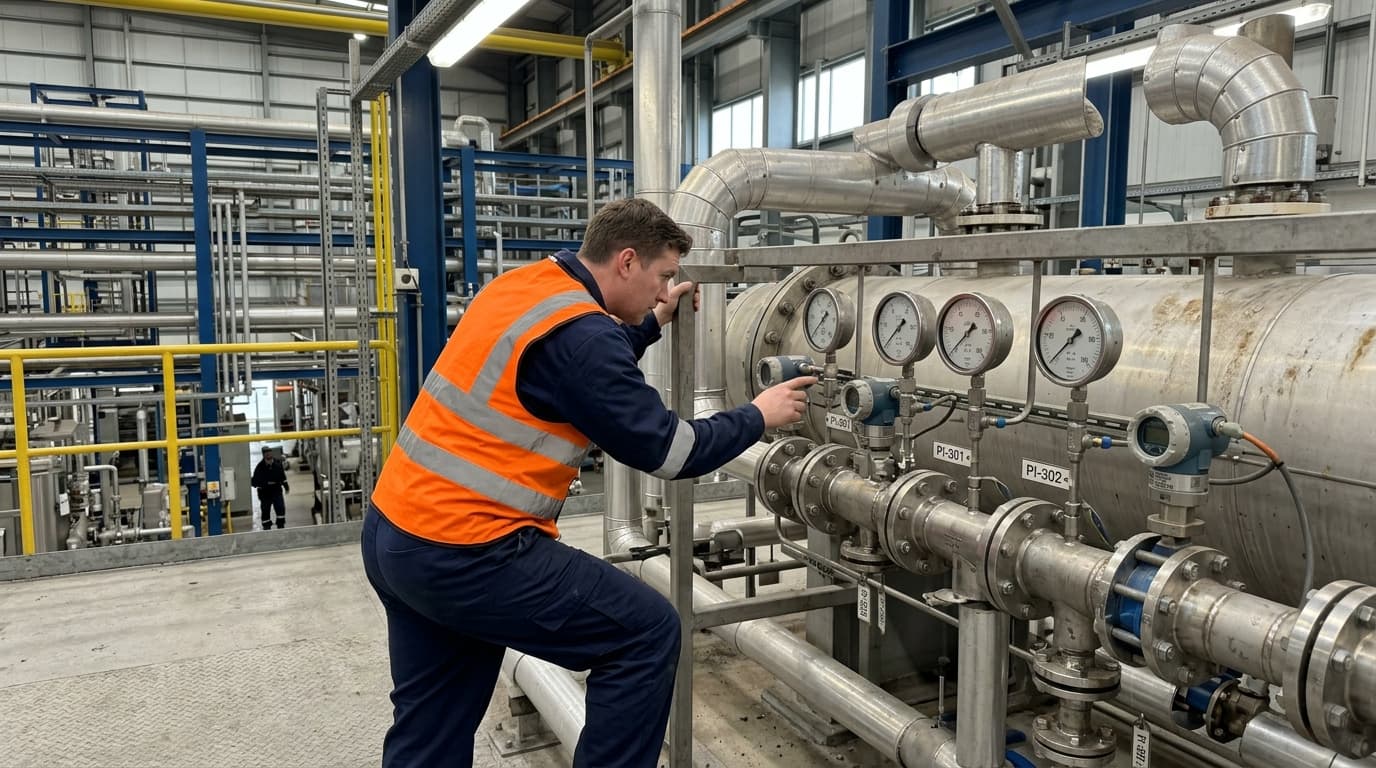

Driving Compliance through ISO 50001:2018

The impetus for HEN optimisation has shifted from being purely an engineering exercise to a critical regulatory and financial necessity. The international standard ISO 50001:2018 for Energy Management Systems (EnMS) provides the framework that many organisations use to document, measure, and improve their energy performance.
For many industrial sectors in the UK and EU, ISO 50001 is increasingly becoming a strategic tool to comply with evolving energy directives. The 2026/2027 regulatory landscape, specifically within the EU and aligned frameworks in the UK, has heightened the pressure on heavy energy users—often mandating energy audits or the implementation of certified EnMS for companies consuming above specific GWh thresholds.
A robust HEN optimisation project serves as a cornerstone of an ISO 50001 implementation:
- Baseline Establishment: The data extraction phase of an energy audit provides the essential baseline energy consumption data required by the standard.
- Significant Energy Use (SEU) Identification: Heat exchange processes are almost invariably classified as SEUs. Optimising these networks provides tangible, auditable evidence of "continual improvement" in energy performance.
- Measurable KPIs: HEN optimisation allows for the creation of specific Energy Performance Indicators (EnPIs), such as "specific energy consumption per unit of product" (e.g., GJ/tonne), which are required to track progress under ISO 50001.
By embedding heat integration into an EnMS, plant operations directors move away from reactive, "firefighting" energy projects toward a proactive, data-driven cycle of efficiency that yields compounding financial returns.
Practical Implementation: Balancing Theory and Reality
The transition from a theoretical pinch study to a commissioned, operational heat exchanger network requires rigorous attention to equipment selection. The industry is currently seeing a rapid shift toward more efficient, compact, and resilient heat exchanger technologies.
Brazed plate and welded plate heat exchangers, for instance, are increasingly replacing traditional shell-and-tube units in suitable applications due to their superior heat transfer coefficients and smaller footprint, which simplifies retrofit installations. Furthermore, the rise of digital twins and IoT-enabled monitoring is allowing engineers to move beyond static, design-phase optimisations.
Modern operational software now enables real-time monitoring of exchanger performance. By tracking heat transfer coefficients in situ, operators can distinguish between a drop in efficiency caused by process changes (which might be corrected by retuning the network) and a drop caused by fouling (which requires a maintenance intervention).
The successful execution of a heat exchanger network optimisation project requires an integrated mindset. It is not merely a software-driven calculation, but a multidisciplinary effort that combines process systems engineering, mechanical reliability, and regulatory compliance. As energy prices remain volatile and the regulatory burden continues to tighten, those who master the systematic design of their heat integration networks will secure a lasting competitive advantage.
This article reflects the independent analysis and editorial opinion of EnerTherm Engineering. Product names, trademarks, and brands mentioned belong to their respective owners. EnerTherm Engineering is not affiliated with, endorsed by, or a licensee of any third-party software or product mentioned unless explicitly stated.
