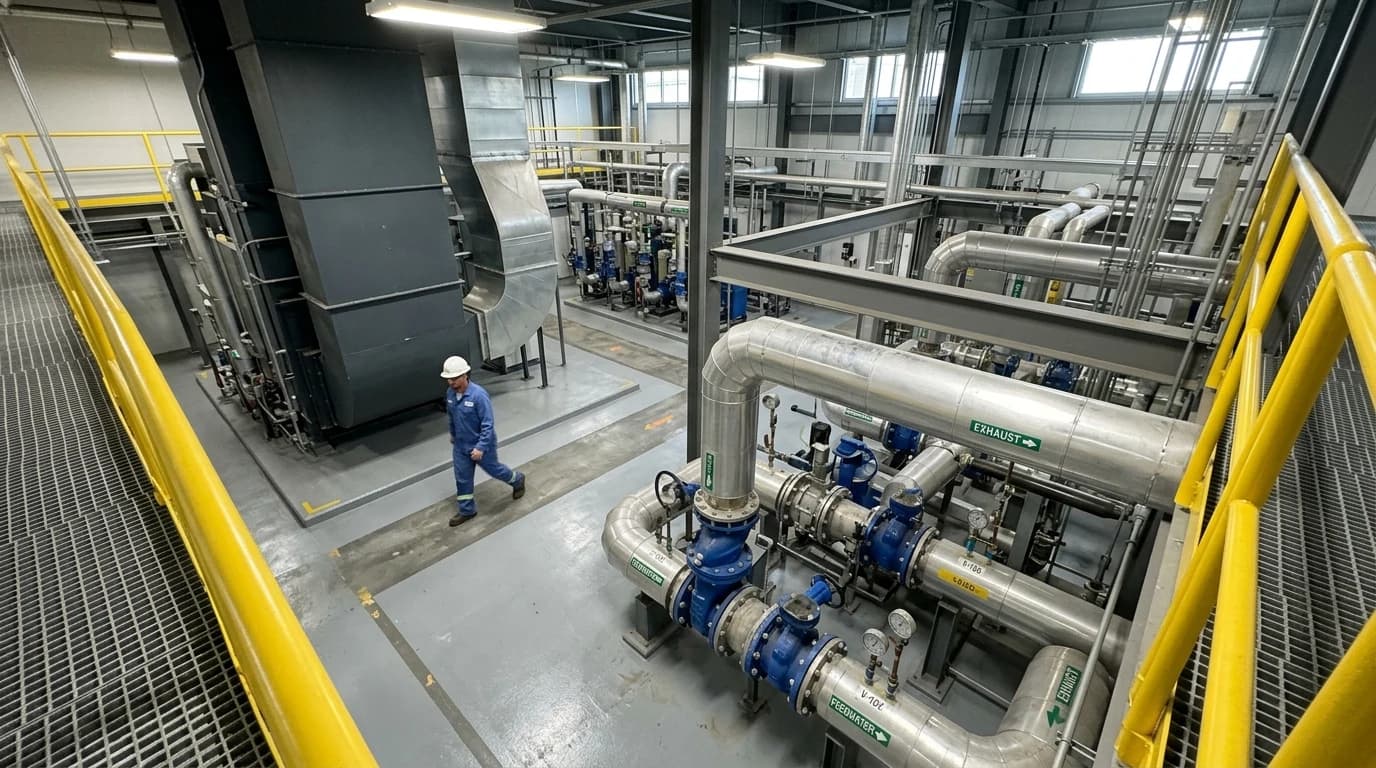

Industrial Heat Recovery Systems Save up to 25% on Gas
A cost-benefit analysis of heat recovery projects targeting a 1-3 year payback.
Approximately 50 per cent of the energy consumed by industrial manufacturing plants in the United Kingdom is lost directly to the atmosphere as waste heat. According to the landmark 2026 report published by the Royal Society, Unlocking thermal energy: Capture, storage and re-use of industrial waste heat, this thermal loss represents one of the largest single inefficiencies in modern manufacturing. With industrial heating accounting for roughly 14 per cent of total UK greenhouse gas emissions, plant operators face a double challenge: escalating energy costs and tightening decarbonisation mandates.
For energy-intensive facilities operating steam boilers, kilns, or process heaters, the integration of industrial heat recovery systems presents a direct, technically proven method to reduce natural gas consumption by up to 25 per cent. Reclaiming and redirecting thermal energy that would otherwise escape through exhaust stacks allows process plants to decrease fuel demand, reduce Scope 1 emissions, and improve their long-term market competitiveness.

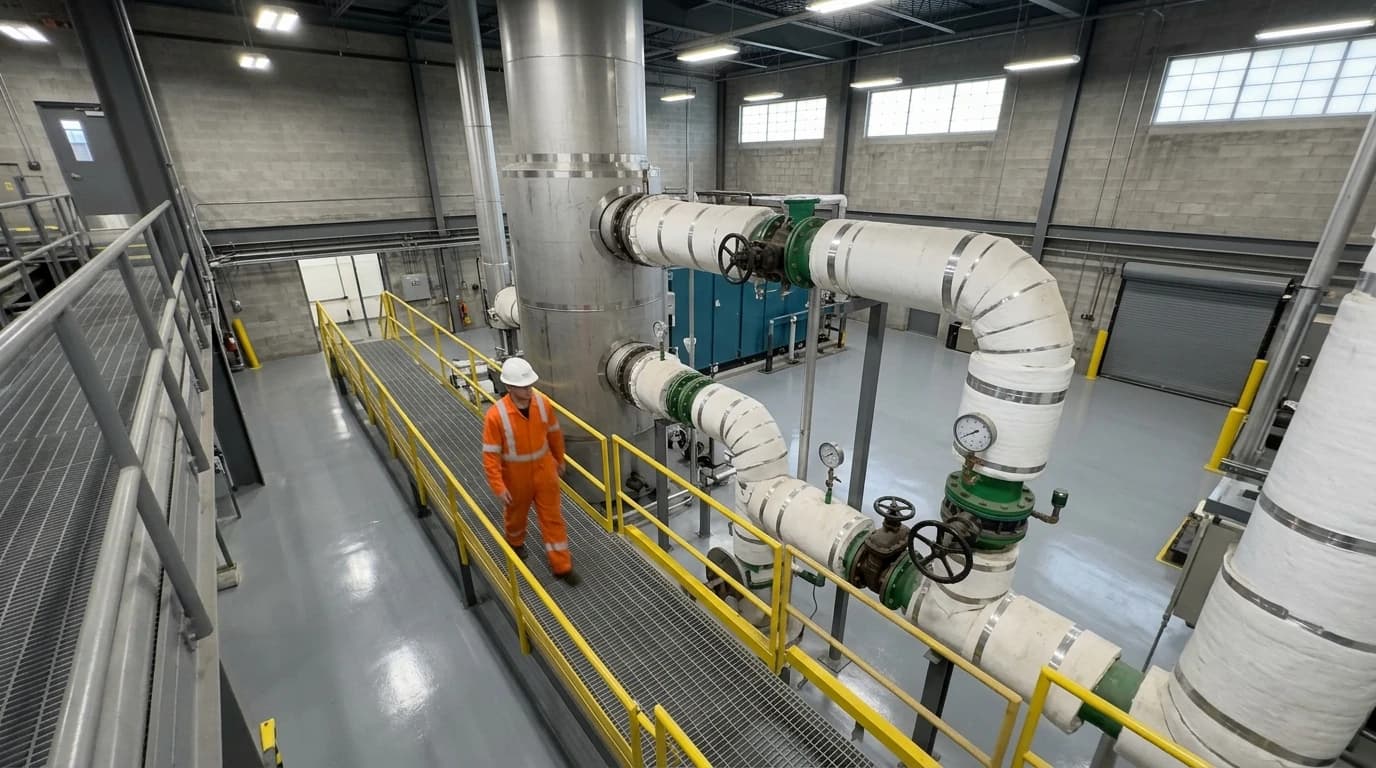

1. The Business Case for Decarbonising Industrial Thermal Processes
1.1 The Scale of Industrial Waste Heat
Industrial operations in sectors such as chemical processing, glass manufacturing, steel production, and food processing rely on thermal energy to drive fundamental physical and chemical transformations. The temperatures required for these processes can exceed 1,000 °C, and in some sectors, they reach up to 2,000 °C. Once the primary thermal process is complete, the exhaust gases, steam condensates, and cooling liquids are typically discharged.
The Royal Society's 2026 working group, chaired by Professor Andy Woods FRS of the University of Cambridge, established that over half of the primary energy entering these systems is discharged as a waste product. For a typical mid-sized chemical facility spending hundreds of thousands of pounds annually on natural gas, this represents a major financial loss.
1.2 Gas Savings and the Cost-Benefit Equation
Installing high-efficiency heat recovery equipment, such as economisers, recuperators, or run-around coil loops, directly intercepts these waste streams. By transferring this recovered thermal energy back into the plant's utility loops, operators can offset a significant portion of their primary fuel demand.
For instance, preheating combustion air or boiler feedwater using exhaust gas energy means the burner requires less natural gas to reach the target operating temperature. A 10 °C increase in boiler feedwater temperature typically yields a 1 per cent reduction in fuel consumption. In high-temperature exhaust systems, preheating combustion air to 150 °C can reduce gas demand by 10 to 15 per cent. When combined with low-grade heat recovery from blowdown and condensate return systems, total gas savings can reach up to 25 per cent.
Heat & Mass Balance.
Map every energy and material flow in your process with detailed heat and mass balance calculations — the foundation for any optimisation or design project.
2. The Thermodynamics of Reclaimed Energy: Quantifying Recoverable Heat
2.1 The Standard Heat Flow Calculation
To establish the technical feasibility of any heat recovery project, engineers must calculate the total energy flow rate available within the waste stream. The baseline thermodynamic capacity of a gas or liquid stream is calculated using the standard heat flow formula:
Q=S⋅V⋅ρ⋅Cp⋅ΔTWhere:
- Q is the rate of thermal energy flow or heat recovery potential, in kilowatts (kW).
- S is the cross-sectional area of the flue gas duct or process pipe, in square metres (m²).
- V is the average velocity of the fluid stream, in metres per second (m/s).
- ρ is the density of the fluid stream at its operating temperature, in kilograms per cubic metre (kg/m³).
- Cp is the specific heat capacity of the fluid, in kilojoules per kilogram-Kelvin (kJ/kg·K).
- ΔT is the usable temperature differential across the heat exchanger, in Kelvin (K) or degrees Celsius (°C).
Through this equation, the term S⋅V⋅ρ represents the mass flow rate (m˙) of the stream in kilograms per second (kg/s). By identifying the maximum safe temperature drop (ΔT) that the fluid can undergo without causing process issues, engineers can quantify the thermal energy available for capture.
2.2 Moving Beyond Steady-State Approximations
While the standard heat flow formula provides a valuable initial calculation, real-world industrial processes are rarely static. Volumetric flow rates, exhaust temperatures, and fluid compositions fluctuate based on production cycles, seasonal ambient conditions, and fuel-to-air ratios.
To model these dynamics accurately, thermal design teams typically select advanced thermodynamic simulation platforms. Software such as Aspen Plus, HYSYS, and DWSIM allows engineers to run multi-component, non-ideal fluid models. These simulations verify phase-change behaviour, chemical dew points, and temperature-dependent specific heat capacities, ensuring the specified heat exchanger performs reliably under all operational conditions.
2.3 Fluid Dynamics and Pressure Drop Trade-offs
A critical factor in the design of any heat recovery system is the pressure drop across the heat exchanger. Placing a physical barrier, such as a finned-tube bundle, inside an exhaust stack restricts the flow of gases. This restriction increases system backpressure, which can negatively affect boiler draught or furnace combustion.
The heat flow formula must therefore be balanced against hydraulic calculations. Designing a larger heat transfer area increases heat recovery (Q) but also increases the pressure drop. Engineers must carefully size the heat exchanger to maximise thermal transfer while staying within the static pressure limits of existing draught fans.

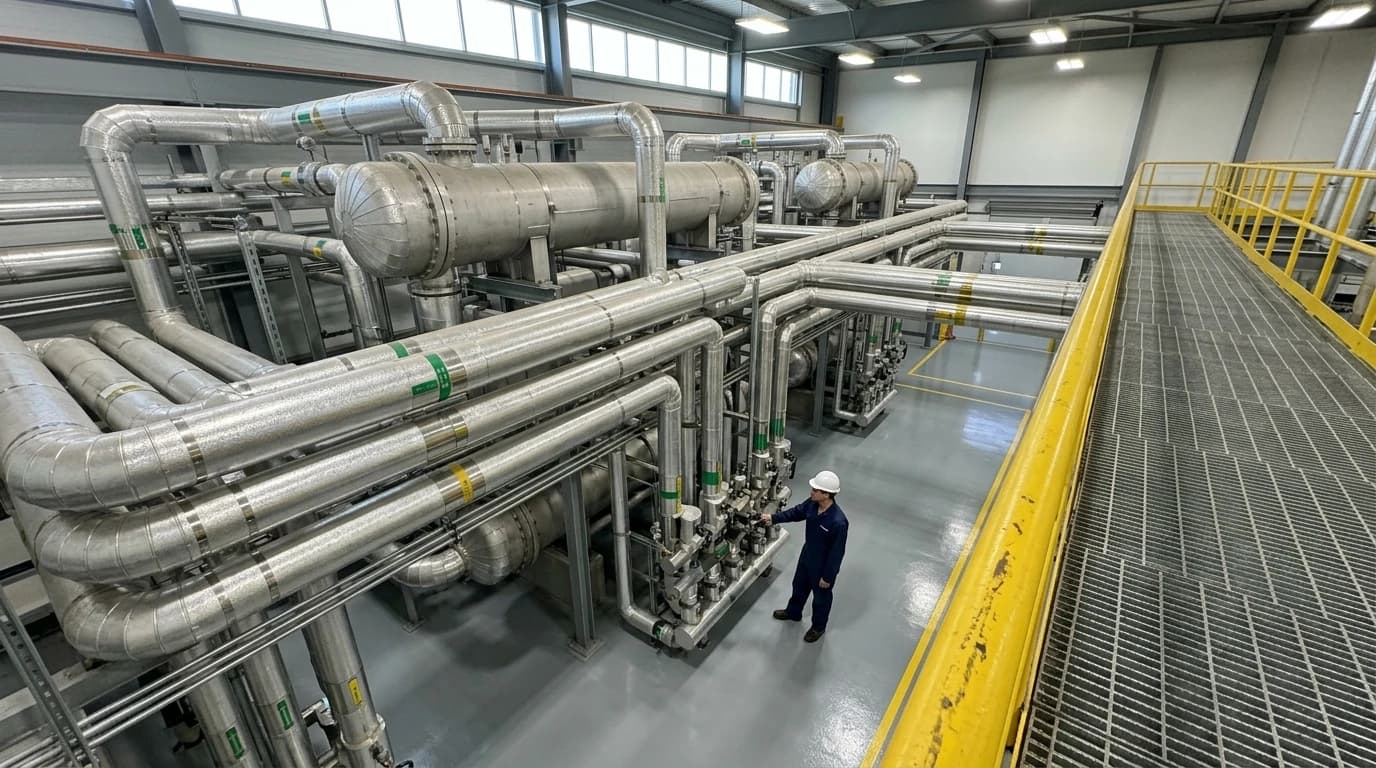

3. Heat Cascades: Designing Multi-Tiered Waste Heat Recovery Systems
3.1 The Principle of Thermal Cascading
The Royal Society's 2026 report advocates for the systematic deployment of "heat cascades". This process optimisation technique structures heat recovery in a hierarchy based on temperature, ensuring that high-grade thermal energy is not wasted on low-temperature applications.
In a heat cascade, thermal energy is captured at its highest temperature source and re-used sequentially at progressively lower temperatures. For example, exhaust gas exiting a high-temperature kiln at 800 °C is first used to preheat the kiln's combustion air. The remaining gas, now cooled to 400 °C, is routed through a secondary heat exchanger to generate high-pressure steam for the plant's main utility header. Finally, the low-temperature gas exiting at 150 °C is passed through a condensing economiser to warm cold boiler make-up water, extracting the final portion of usable energy before discharge.
3.2 Waste Heat to Power Systems and Medium-Grade Capture
When on-site thermal demand is fully met, excess medium-grade heat (typically between 150 °C and 400 °C) can be converted into electrical energy. Process engineers implement waste heat to power systems, such as Organic Rankine Cycle (ORC) units, to generate electricity from waste streams.
ORC systems operate similarly to traditional steam turbines but utilise an organic working fluid with a boiling point lower than that of water. This lower boiling point allows the system to generate high-pressure vapour from moderate-temperature exhaust streams, converting thermal energy directly into usable on-site electricity. This reduces both the gas bill and the plant’s imported electrical power requirements.
3.3 Low-Grade Heat Reclamation and District Offtake
Low-grade waste heat (below 100 °C) is often the most challenging to re-use on-site due to its low thermodynamic quality. However, as highlighted in the 2026 Royal Society findings, this grade of heat is highly valuable for domestic space heating and local district heat networks.
Through municipal heat networks, industrial facilities can export low-temperature waste heat to nearby residential, commercial, or public buildings. This approach not only provides a secondary revenue stream for the plant but also supports community-wide decarbonisation efforts.
Heat & Mass Balance.
Map every energy and material flow in your process with detailed heat and mass balance calculations — the foundation for any optimisation or design project.
4. Cost-Benefit Analysis and Payback Periods for Heat Recovery Projects
4.1 Capital Expenditure vs. Operational Reductions
Implementing an industrial heat recovery system requires capital expenditure (CAPEX) for equipment procurement, structural piping, control system integration, and civil works. The initial flue gas heat recovery system cost for a typical 10 MW industrial boiler ranges from £80,000 to £150,000, depending on the materials used.
For corrosive exhaust gases containing sulphur compounds, exchangers must be fabricated from high-grade stainless steel or corrosion-resistant alloys, which increases CAPEX. However, this initial cost is balanced by the substantial reduction in operational expenditure (OPEX) achieved through natural gas savings.
| Industrial Sector | Typical Waste Heat Source | Average Gas Saving (%) | Estimated CAPEX Range (£) | Payback Period (Years) |
|---|---|---|---|---|
| Food & Beverage | Steam Boiler Flue Gas / Pasteuriser Blowdown | 12% - 18% | £60,000 - £110,000 | 1.8 - 2.5 |
| Pulp & Paper | Paper Machine Hood Exhaust / Dryer Condensate | 15% - 22% | £120,000 - £220,000 | 2.0 - 3.0 |
| Chemical Processing | Reactor Jacket Cooling / Reformer Flue Gas | 18% - 25% | £150,000 - £350,000 | 2.2 - 3.5 |
| Ceramics & Glass | High-Temperature Tunnel Kiln Waste Air | 20% - 25% | £250,000 - £550,000 | 3.0 - 4.5 |
4.2 Key Variables Impacting Investment Payback Times
The financial feasibility and payback period for heat recovery projects are heavily influenced by three core variables:
- Annual Operating Hours: Facilities operating continuous 24/7 schedules achieve much faster paybacks than batch-processing plants with intermittent thermal profiles.
- Fuel Cost Fluctuations: Higher natural gas prices compress the payback period, making the capital investment highly attractive as an operational hedge.
- Proximity of Source and Sink: Siting the heat exchanger close to the thermal process that will consume the recovered heat minimises insulation, piping, and pumping costs, directly reducing CAPEX.
4.3 Sector-Specific Savings Profiles
The return on investment (ROI) varies by industry. In chemical manufacturing, where high-temperature exothermic reactions run continuously, the integration of heat recovery into distillation columns and reactor feeds yields exceptionally high energy savings.
In food processing, heat recovery is often integrated with clean-in-place (CIP) hot water loops, where waste thermal energy from refrigeration condensers preheats wash water, reducing gas boiler loads and delivering payback periods often under two years.

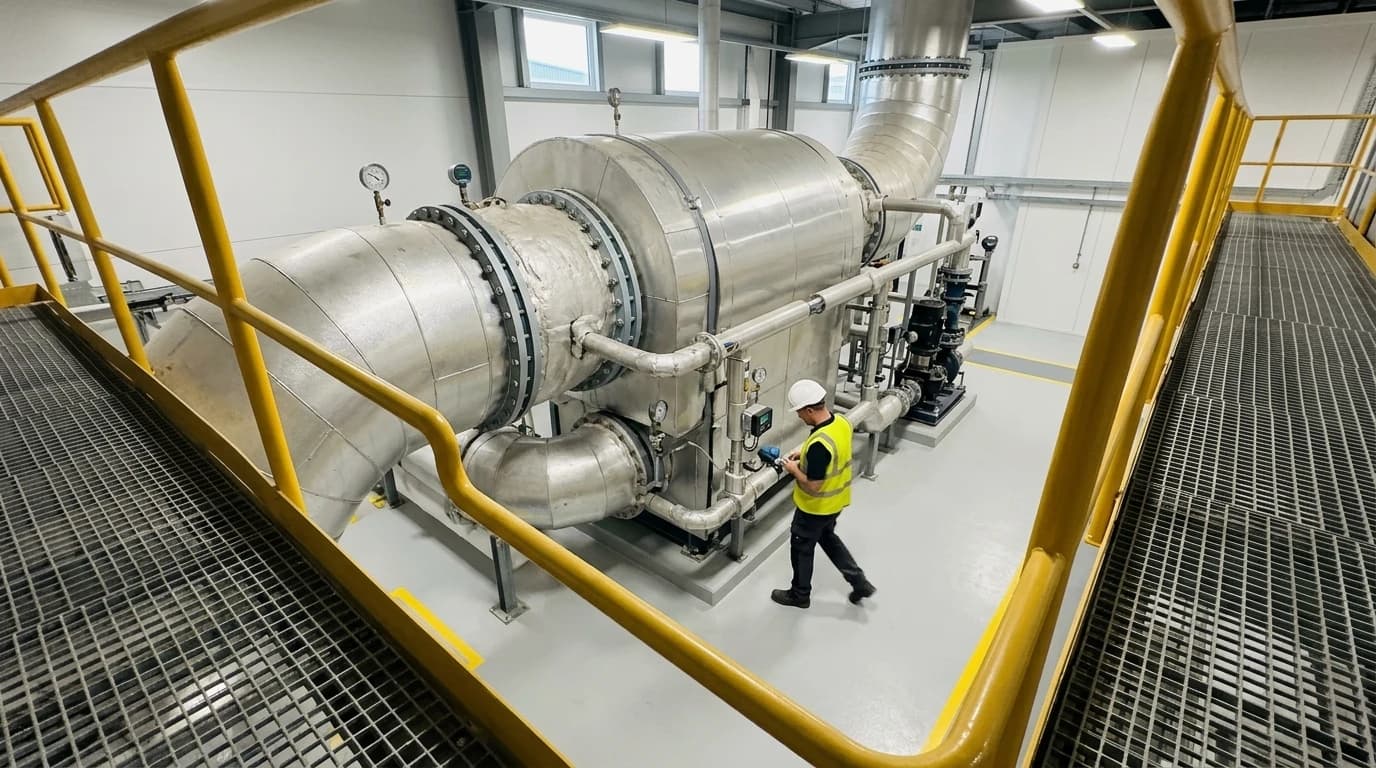

5. Regulatory Drivers and Compliance in the UK and Europe
5.1 UK Building Regulations Part L and Carbon Targets
Environmental compliance is an increasingly important factor in the financial planning of industrial operations. In the UK, Approved Document L Volume 2 of the Building Regulations (specifically the 2026 edition, which takes effect from March 2027) sets rigorous energy efficiency standards for non-domestic facilities.
Approved Document L Volume 2 mandates minimum heat recovery efficiencies for ventilation systems and requires comprehensive reporting on the energy performance of all heat-generating and distribution plants. This makes the installation of high-efficiency recovery systems a key step for ensuring regulatory compliance during plant upgrades or expansions.
5.2 Decarbonisation Strategies and Carbon Budgets
Under the Climate Change Act 2008, the UK is legally bound to reach net zero greenhouse gas emissions by 2050. The UK Government’s Carbon Budget and Growth Delivery Plan requires industrial manufacturing plants to execute verifiable carbon reduction programmes.
Because natural gas combustion generates carbon dioxide, reducing gas demand by up to 25 per cent through waste heat capture directly lowers a plant’s Scope 1 emissions. This reduction helps facilities comply with national targets, avoid carbon taxation, and improve their environmental, social, and governance (ESG) ratings for investors.
5.3 Divergent Standards: The European Policy Landscape
For businesses operating across jurisdictions, international regulatory standards are shifting from voluntary guidelines to mandatory waste heat utilisation. For example, Germany's Energy Efficiency Act (EnEfG) mandates that new data centres must re-use at least 10 per cent of their waste heat starting in 2026, with this requirement rising to 15 per cent in 2027, whilst other energy-intensive industrial facilities must systematically avoid and recover their waste heat.
Additionally, the European Union's Energy Efficiency Directive requires large energy-consuming plants and data centres exceeding 1 MW thermal capacity to conduct comprehensive heat recovery assessments. As these standards influence global supply chains, UK manufacturers must adopt similar energy-saving technologies to maintain their market position.
6. The Engineering Roadmap: Waste Heat Recovery Feasibility Study
6.1 Executing the Initial Scoping Phase
The successful execution of an industrial waste heat recovery project relies on a comprehensive waste heat recovery feasibility study. A structured, data-driven approach is essential for identifying the correct thermal sources and sinks, preventing costly design errors, and ensuring that the installed equipment operates reliably.
A thorough scoping phase begins with detailed on-site data collection, including:
- Reviewing Piping and Instrumentation Diagrams (P&IDs) to map out fluid paths.
- Gathering historical Distributed Control System (DCS) logs to analyse temperature and flow variations.
- Recording physical spatial constraints within the exhaust stacks and utility rooms.
6.2 Designing a Validated Heat and Mass Balance
At the core of process optimisation is the development of a validated heat and mass balance. Designing a "single-source-of-truth" Process Flow Diagram (PFD) with embedded stream tables and Sankey energy mapping ensures that all thermal flows are accounted for, from species-level mass balances to thermodynamic energy equations.
To achieve this, engineers utilise industry-standard simulation software, such as Aspen Plus and HYSYS, to build high-fidelity steady-state and dynamic models. These models allow designers to perform pinch analysis, which optimises the heat exchanger network by matching hot waste streams with cold process streams in the most thermodynamically efficient configuration.
6.3 Standardising the Transition from Data to Commissioning
To systematically transition a facility from initial data acquisition to a fully operational, high-efficiency recovery system, EnerTherm Engineering utilises a proprietary 11-step engineering methodology:
- Initial Data Acquisition: Collecting process metrics, P&IDs, and historical DCS logs.
- Steady-State & Dynamic Simulation: Developing thermodynamic process models in software such as Aspen Plus, HYSYS, or DWSIM.
- Pinch Analysis & Thermal Profiling: Mapping out thermal sources and sinks to design the most efficient heat transfer network.
- Single-Source-of-Truth PFD Generation: Creating a master Process Flow Diagram with integrated stream tables and Sankey diagrams.
- Heat Exchanger Selection & Material Specification: Selecting the appropriate exchanger geometry (e.g., shell and tube, plate, or finned-tube) and choosing materials that resist corrosion and fouling.
- Hydraulic & Backpressure Verification: Modelling fluid dynamics to ensure the recovery equipment does not exceed static pressure limits or restrict flow.
- Control Loop Integration: Designing automated control strategies, such as bypass dampers and temperature control valves, to manage fluctuating process loads.
- Economic & ROI Validation: Finalising CAPEX estimates, projected natural gas savings, and payback schedules.
- Regulatory & Safety Compliance Review: Confirming compliance with UK Building Regulations Part L, as well as sector-specific standards like HACCP in food production or GMP in pharmaceuticals.
- Detailed Mechanical Design & Isometrics: Generating fabrication-ready 3D models and piping isometric drawings.
- Commissioning Support & Performance Audits: Overseeing installation and conducting thermal performance audits to verify that the system achieves the targeted fuel savings.
Adhering to this structured engineering pathway ensures that industrial plants can safely and reliably capture waste energy, reduce their natural gas consumption by up to 25 per cent, and make a solid, data-supported business case for their capital investment.
