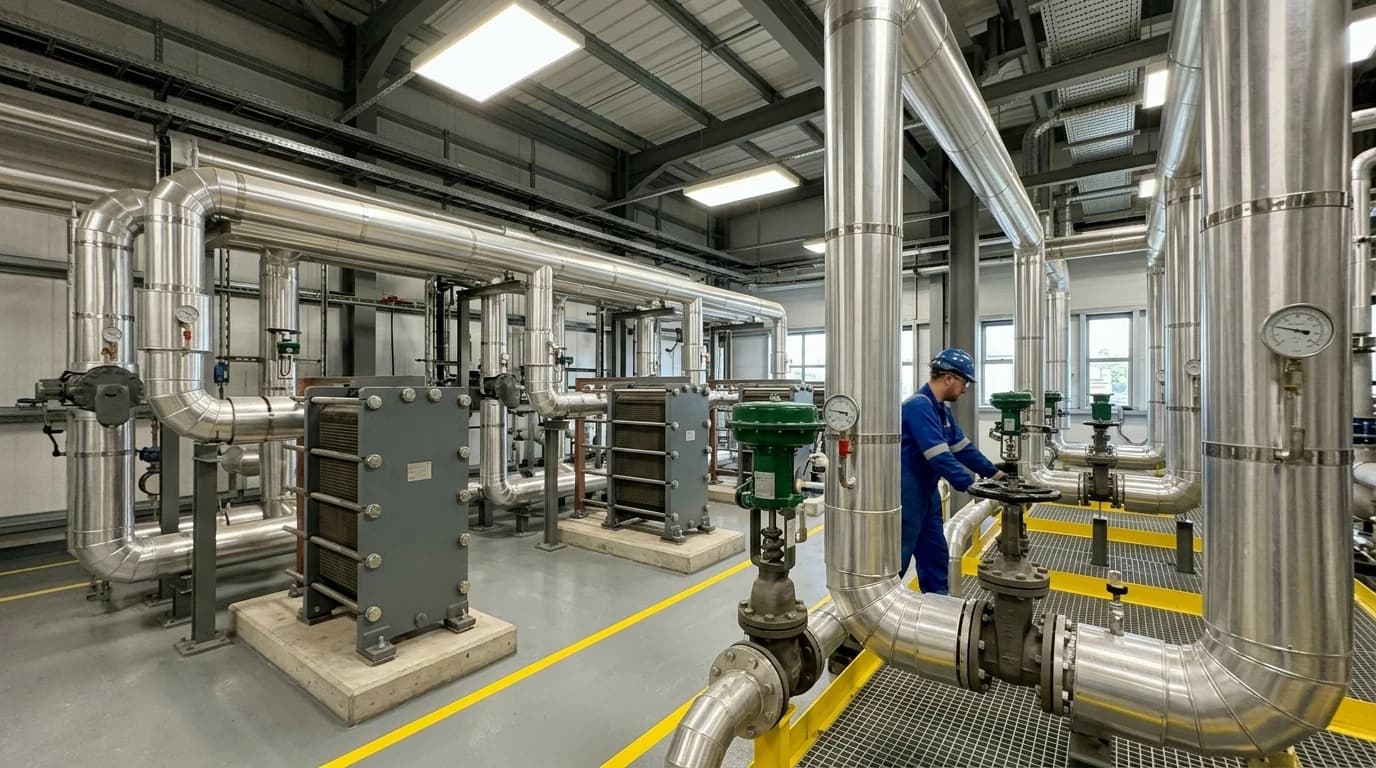

Pinch Analysis Cuts Kraft Mill Steam Demand by 12-18.5%

Redesigning heat exchanger networks to achieve capital payback in under 16 months.

Pinch analysis in the pulp and paper industry is a systematic process integration methodology that optimises heat exchanger networks by identifying thermodynamically feasible energy targets and minimising external utility demands. By evaluating the thermal profiles of individual process streams, process engineers can identify thermodynamic bottlenecks and redesign heat recovery systems. For integrated Kraft pulp and paper mills, this thermodynamic technique reveals substantial opportunities to reduce mill-wide steam consumption, lower carbon emissions, and achieve rapid capital payback periods on thermal retrofits.

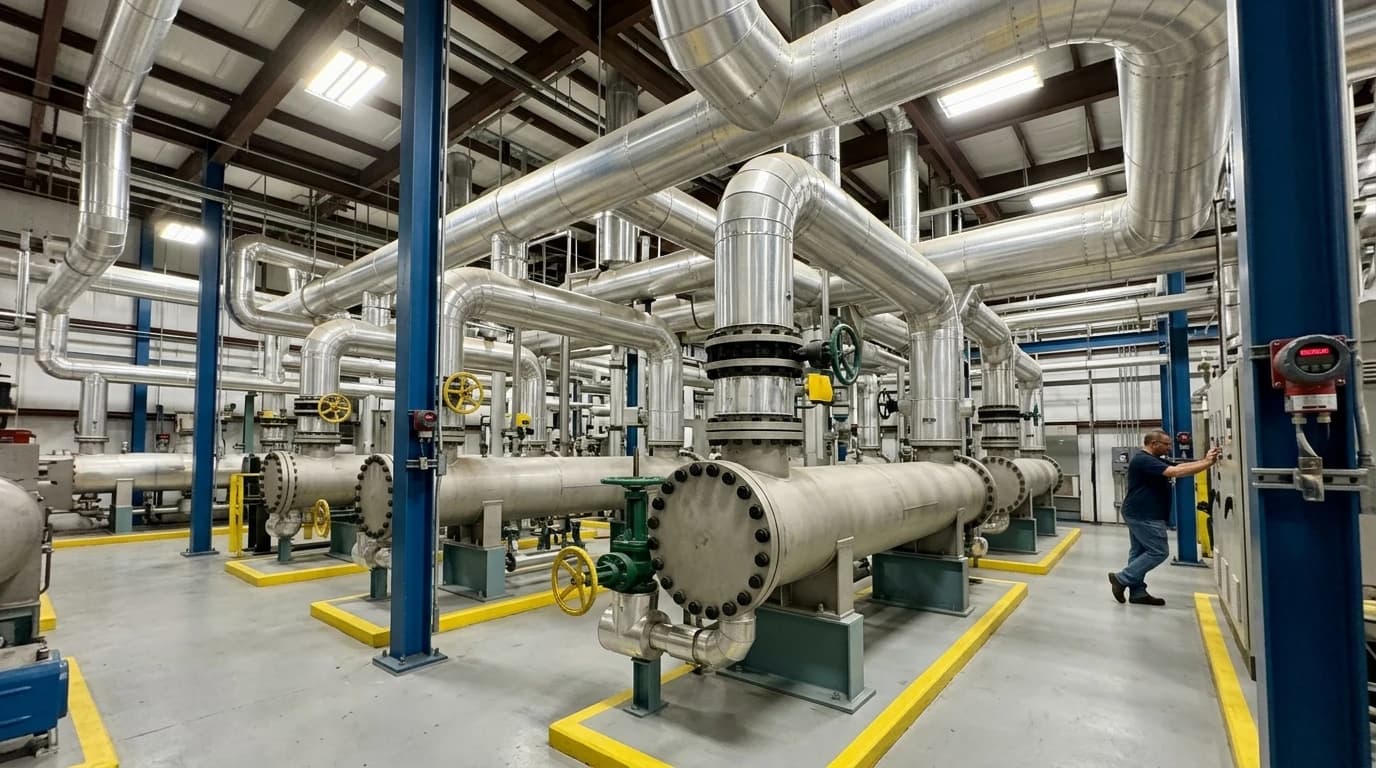

The Thermodynamic Imperative in Kraft Pulp Manufacturing

Process Steam Allocation and Thermal Bottlenecks

Pulp and paper manufacturing represents one of the most energy-intensive industrial sectors in the United Kingdom and continental Europe. High utility costs constitute between 10 and 40 per cent of total manufacturing expenses, which directly impacts the financial viability of operating mills. In a Kraft pulp mill, steam serves multiple energy-intensive processes. The chemical pulping sequence begins by digesting wood chips in a white liquor solution of sodium hydroxide (NaOH) and sodium sulphide (Na₂S) at temperatures ranging from 155°C to 175°C. This step breaks down the lignocellulosic structure, dissolving the lignin to free the cellulose fibres. Steam is also required to preheat boiler feedwater, heat incoming process water, and drive multiple-effect evaporator trains.

The Dominance of the Dryer Section

The paper machine dryer section dominates the thermal energy profile of the entire facility. In non-integrated paper mills, the drying process consumes 80 to 90 per cent of total mill steam, accounting for approximately 70 per cent of fossil fuel consumption. Liquid water within the wet paper web must be evaporated from a starting dryness of about 40 to 45 per cent up to a final dryness of 92 to 95 per cent. This phase change requires significant latent heat, which is supplied by cascading steam through dozens of rotating cast-iron cylinders. Minimising the steam demand of the dryer section, while recovering low-grade latent heat from the hood exhaust air, represents a primary objective of industrial energy management.

Sub-optimal Heat Exchanger Networks

Historically, design teams optimised individual mill operations in isolation. A facility might have separate, localised thermal designs for the digester house, the evaporator train, and the paper machine. While this local approach ensures that each unit meets its immediate process requirements, it frequently results in global inefficiencies across the wider facility. Without a system-wide view, process streams requiring cooling are often sent to dedicated water-cooled exchangers, while streams requiring heating rely on high-pressure steam. This separation leads to the critical error of transferring heat across the thermodynamic pinch point, which simultaneously increases both the heating and cooling loads of the mill.

Core Principles of Pinch Analysis in the Pulp and Paper Industry

Constructing Composite Curves for Complex Mill Streams

To apply pinch analysis, process engineers must catalogue every stream in the mill that requires heating or cooling. Hot streams represent fluids that must be cooled, acting as potential heat sources. Cold streams represent fluids that must be heated, acting as heat sinks. For each stream, engineers define the supply temperature ($T_s$), target temperature ($T_t$), mass flow rate, and specific heat capacity. These parameters are combined to calculate the heat capacity flow rate ($CP$).

By combining the heat capacity flow rates of all hot streams over their respective temperature intervals, engineers construct a single Hot Composite Curve on a Temperature-Enthalpy ($T$-$H$) diagram. Repeating this process for all cold streams yields a Cold Composite Curve. Plotting these two curves together reveals the region where they overlap, indicating the maximum potential for internal heat exchange.

The Grand Composite Curve and Utility Matching

The point of closest approach between the Hot and Cold Composite Curves is the thermodynamic pinch point. Process designers define this point by the minimum temperature approach, designated as $\Delta T_{min}$. The pinch point divides the process into two distinct thermodynamic regions: an upper region that is a heat sink (requiring only hot utility) and a lower region that is a heat source (requiring only cold utility).

Engineers express the overall heat balance of the integrated system mathematically. The minimum hot utility ($Q_{H,min}$) and cold utility ($Q_{C,min}$) requirements are calculated using:

$$Q_{H,min}-Q_{C,min}=\sum \Delta H_{hot}-\sum \Delta H_{cold}$$

where $Q_{H,min}$ is the minimum heating utility required (kW), $Q_{C,min}$ is the minimum cooling utility required (kW), $\Delta H_{hot}$ is the enthalpy change of the hot streams (kW), and $\Delta H_{cold}$ is the enthalpy change of the cold streams (kW).

The Grand Composite Curve (GCC) plots the temperature of the process against the net utility demand. The GCC shows how much heat is available at different temperatures, allowing engineers to select the most appropriate levels of steam (such as high, medium, or low pressure) rather than relying on high-grade steam for low-temperature heating.

Selecting the Minimum Temperature Approach ($\Delta T_{min}$)

The selection of $\Delta T_{min}$ is the critical decision in any pinch analysis project. This parameter determines the trade-off between operating costs (steam consumption) and capital costs (heat exchanger surface area).

A smaller $\Delta T_{min}$ brings the composite curves closer together, reducing the demand for external utilities. However, as $\Delta T_{min}$ approaches zero, the required heat transfer area approaches infinity. For Kraft mill retrofits, the optimum $\Delta T_{min}$ typically lies between 10°C and 20°C. Setting the minimum temperature approach too low makes the capital payback period of a heat exchanger network (HEN) retrofit economically non-viable, whereas setting it too high wastes valuable steam.

To prevent transferring heat across the thermodynamic pinch point, engineers must enforce three fundamental rules during network synthesis:

1. Do not transfer heat across the pinch point.
2. Do not use cold utility above the pinch point.
3. Do not use hot utility below the pinch point.

Violating these rules creates a double penalty, increasing both the external heating and cooling requirements of the facility.

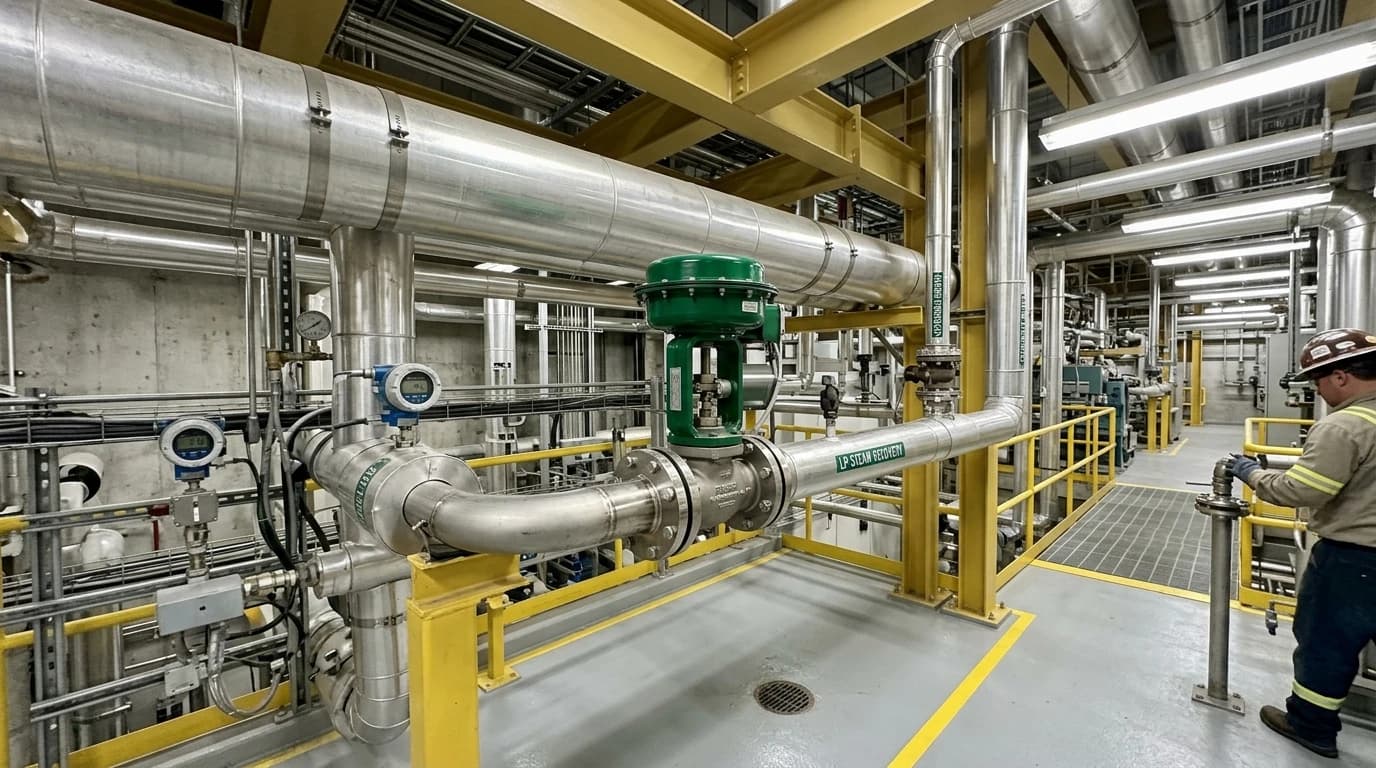

Reconciling Mill Streams and Designing Thermodynamic Models

Developing High-Fidelity Mass and Energy Balances

A systematic process integration project relies on reconciling extensive mill data. Data acquisition involves gathering piping and instrumentation diagrams (P&IDs), historical distributed control system (DCS) logs, and direct physical measurements of temperature, pressure, and flow rates. Process modelling teams compile these parameters to solve species-level mass balances and thermodynamic energy balances.

In a Kraft pulp mill, streams are highly complex. They consist of mixtures of water, cellulose fibres, dissolved wood lignin, and inorganic chemicals. To ensure the accuracy of the model, process engineers must reconcile these multi-component streams. This reconciliation produces a validated mass and energy balance, which serves as the foundation for the subsequent pinch analysis.

Addressing Non-Ideal Thermodynamic Properties and Black Liquor Behaviour

Kraft mill streams do not behave like pure water. Black liquor, the by-product of the chemical pulping process, exhibits significant boiling point elevation (BPE) as its solids concentration increases. At 70 to 75 per cent dry solids, the boiling point of black liquor can be 10°C to 15°C higher than that of pure water at the same pressure.

Failing to account for BPE reduces the effective temperature driving force in multiple-effect evaporators, leading to inaccurate pinch evaluations. Process integration models must recalculate heat transfer coefficients ($U$-values) dynamically, factoring in the non-Newtonian viscosity of concentrated liquor and pulp slurries.

Rigorous Validation on Commercial Simulation Platforms

To model these complex stream behaviours, process engineers often use commercial process simulation platforms such as Aspen Plus, HYSYS, or DWSIM. These software tools allow designers to run steady-state and dynamic simulations, reconciling complex chemical reactions in the recovery loop and transient behaviours during paper machine grade changes.

Modelling teams must validate the baseline models against seasonal changes (such as cold winter water intake versus warm summer conditions) and process upsets (like paper machine sheet breaks or liquor evaporator wash cycles). This rigorous validation ensures that the proposed heat exchanger modifications remain stable under all operating conditions.

Targeted Pinch Integration Across Core Kraft Mill Operations

Optimising Steam and Condensate Cascades in the Paper Machine

Since the paper drying section consumes 80 to 90 per cent of a mill's thermal energy, it is the primary target for pinch analysis. A cylinder-by-cylinder thermodynamic analysis of the paper machine reveals the exact steam condensation rates and condensate evacuation behaviours across the pre-drying and after-drying sections.

Optimising the steam and condensate system involves:

• Regulating the pressure cascade between steam groups to maximise flash steam reuse.
• Improving the performance of thermocompressors to entrain low-pressure exhaust steam back into the high-pressure headers.
• Recovering latent heat from the hood exhaust air (which often leaves the mill at 60°C to 80°C) to preheat incoming pocket ventilation air and process water loops.

Integrating Multiple-Effect Evaporators with Mill Waste Heat

The black liquor recovery cycle is highly energy-intensive. Weak black liquor (at approximately 15 per cent dry solids) must be concentrated to over 65 to 80 per cent dry solids before it can be burned in the recovery boiler. A multiple-effect evaporator (MEE) plant concentrates this liquor, where the steam economy (defined as mass of water evaporated per mass of steam consumed) typically ranges from 2.5 to 5.0.

Pinch analysis of the MEE plant helps integrate secondary heat streams. For example, hot condensates from the evaporators can preheat the weak liquor feed, or flash steam from the continuous digester can drive the first effect of the evaporator train, reducing the overall live steam demand of the mill.

Bleach Plant Filtrate Reuse and Water Loop Closure

Modern bleach plants operate with multiple stages (such as oxygen delignification, chlorine dioxide bleaching, and alkaline extraction) requiring temperatures between 70°C and 90°C. These stages generate large volumes of warm filtrate.

Pinch analysis identifies opportunities to reuse bleach plant filtrates in counter-current washing configurations. By washing the pulp with filtrate from subsequent stages rather than freshwater, the operator retains thermal energy within the process. This filtrate reuse reduces both freshwater consumption and the steam required to heat wash water, while lowering the thermal load on the wastewater treatment plant.

Steam Header Reconciliation and Cogeneration

Most Kraft mills operate complex, multi-pressure steam utility systems, typically utilising high-pressure (HP), medium-pressure (MP), and low-pressure (LP) headers. Steam is let down through extraction-backpressure turbines to generate electricity while providing process steam.

Pinch analysis helps reconcile the steam headers by matching the grand composite curve to the exact extraction pressures of the turbines. This prevents the wasteful practice of throttling steam through pressure-reducing valves (PRVs) without extracting useful mechanical work.

Additionally, closing the mill's water circuits (white water and filtrate loops) reduces both freshwater intake and the energy required to heat that water, shifting the overall pinch point of the mill to a more favourable thermodynamic state.

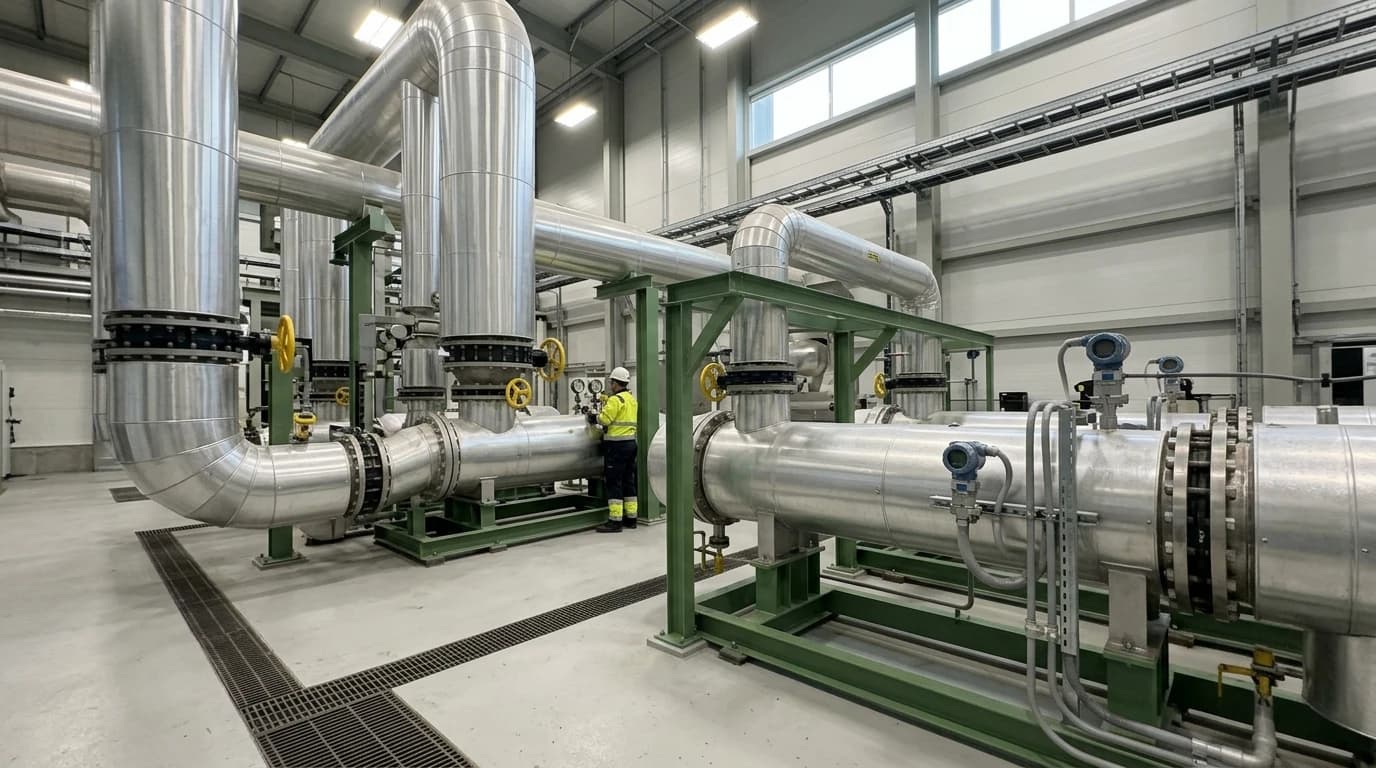

Operational and Financial Performance of Pinch Retrofits

Quantifying Thermal Energy and Carbon Reductions

Applying pinch analysis in the pulp and paper industry regularly uncovers substantial thermal energy savings. In typical mill-wide optimisation projects, process engineers achieve average energy savings of 14 per cent, resulting in an annual CO₂ emission reduction of approximately 2,800 tonnes of CO₂e for a standard integrated facility.

The following table outlines the typical performance metrics and targets associated with pinch retrofits:

Analysis of the Chalmers University Case Study

The financial viability of heat exchanger network (HEN) retrofits is exceptionally strong. In a prominent study of a partly integrated Kraft pulp and paper mill conducted by Chalmers University of Technology, researchers evaluated two primary retrofit options to capture an 18.5 MW energy saving potential, which represented 12 per cent of the mill's steam demand:

1. Retrofit Option I (Straightforward Retrofit): This option targeted easy-to-implement piping and heat exchanger changes, saving 5.8 MW of steam at an investment cost of €0.13 million per MW of steam saved.
2. Retrofit Option II (Extensive Retrofit): This option represented a more comprehensive re-sequencing of the HEN, saving 11 MW of steam at an investment cost of €0.14 million per MW of steam saved.

By reducing the steam demand, the mill directly lowered the consumption of bark fuel in its power boilers. The payback periods for both retrofit investments were calculated to be less than 16 months, or approximately 1.3 years. More complex mill-wide retrofits that integrate advanced steam-header control strategies and upgraded condensate recovery systems typically yield payback periods of around 1.8 years.

Regulatory Alignment and Decarbonisation Pathways to 2050

Compliance with UK ETS and Climate Change Agreements

Industrial facilities in the UK must navigate strict environmental policies. The UK Emissions Trading Scheme (UK ETS) imposes direct costs on carbon emissions, making energy efficiency improvements highly profitable by reducing the number of carbon allowances a mill must purchase.

Simultaneously, participating in Climate Change Agreements (CCAs) allows pulp and paper manufacturers to receive significant discounts on the Climate Change Levy (CCL) in exchange for meeting specific energy efficiency targets. Conducting a rigorous pinch analysis provides a verifiable, scientifically grounded methodology to prove to regulators that the mill is actively minimising its primary energy demand.

Achieving Climate Neutrality by 2050

The Confederation of European Paper Industries (Cepi) has committed to achieving complete climate neutrality by 2050. Meeting this ambitious target requires mills to transition away from fossil fuel boilers entirely. However, switching to biomass or electrification is only economically feasible if the overall thermal demand of the mill is first minimised through process integration.

Once the steam demand has been optimised via pinch analysis, advanced technologies can be integrated to close the remaining energy loops:

• High-Temperature Heat Pumps (HTHPs): These units can upgrade waste heat from low-temperature effluents (such as bleached filtrate at 45°C to 55°C) up to process-ready temperatures of 100°C to 120°C, effectively bypassing the need for low-pressure boiler steam.
• Mechanical Vapour Recompression (MVR): MVR systems compress low-pressure exhaust vapours from the evaporator plant or paper machine hood, raising their temperature and pressure so they can be reused directly as heating steam.

By combining pinch analysis with HTHPs and MVR systems, modern Kraft mills can establish a clear, economically viable roadmap to decarbonisation, ensuring regulatory compliance while dramatically lowering operational costs.

Summary of References

• [1] Elin Svensson & Simon Harvey, "Pinch Analysis of a Partly Integrated Pulp and Paper Mill", Chalmers University of Technology.
• [2] Confederation of European Paper Industries (Cepi), "2050 Climate Neutrality Roadmap".
• [3] UK Department for Energy Security and Net Zero, "Climate Change Agreements (CCAs) & UK ETS Guidelines".

---

This article reflects the independent analysis and editorial opinion of EnerTherm Engineering. Product names, trademarks, and brands mentioned belong to their respective owners. EnerTherm Engineering is not affiliated with, endorsed by, or a licensee of any third-party software or product mentioned unless explicitly stated.
